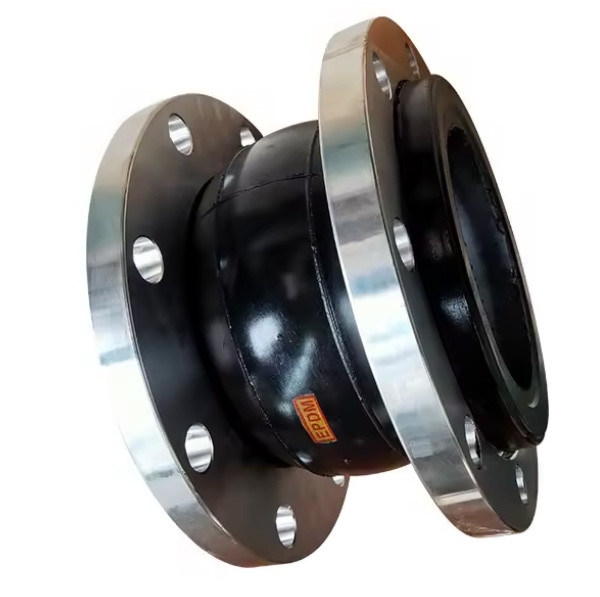

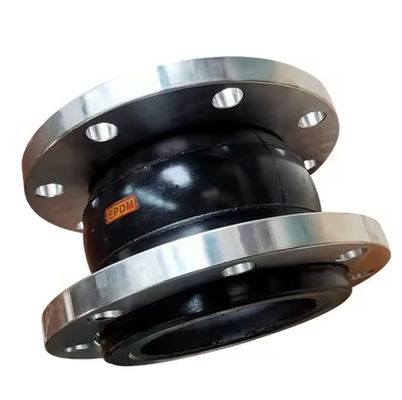

6In Flexible Expansion Joint Single Ball Carbon Steel EPDM Expansion Joint

6In Flexible Expansion Joint Single Ball Carbon Steel EPDM Expansion Joint
6In Flexible Expansion Joint Single Ball Carbon Steel EPDM Expansion Joint 6In Flexible Expansion Joint Single Ball Carbon Steel EPDM Expansion Joint

Large Image :  6In Flexible Expansion Joint Single Ball Carbon Steel EPDM Expansion Joint

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄26.98-35.24 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10000 piece per month
Contact Now Chat Now

6In Flexible Expansion Joint Single Ball Carbon Steel EPDM Expansion Joint

Description
Application: Pipe Lines Connect Working Pressure: PN10/16/25/40
Warranty: 1 Year Customized Support: OEM, ODM
Product Drawings: Offer Rubber Material: EPDM, NR, NBR, Etc
Technology: Forged, Casting, Vulcanization Medium: Air, Water, Oil, Weak Acid And Alkali, Etc
Manufacturer: Yes
Highlight:

6In Flexible Expansion Joint

,

Flexible Expansion Joint Single Ball

,

Carbon Steel EPDM Expansion Joint

6In Flexible Expansion Joint Single Ball Carbon Steel EPDM Expansion Joint
6 Inch Carbon Steel Flexible Flanged Single Ball Rubber Expansion Joints
Key Features
  1. Resolves pipe diameter differences in metal pipelines while providing vibration absorption and noise reduction, reducing assembly costs. Composed of inner rubber layer, plastic rope ball, and loose metal flange.
  2. Features pressure resistance, excellent ductility, large exhaust volume, pipeline error compensation, effective vibration absorption and noise reduction, and easy installation.
  3. Available in various material configurations including acid-resistant, alkali-resistant, corrosion-resistant, heat-resistant, and low-temperature resistant versions for diverse environments.
  4. Constructed with inner rubber layer, textile reinforcement, polyester cord, middle adhesive, outer rubber layer, and reinforced metal ring through high-pressure vulcanization.
Product Advantages
  1. Significantly reduces vibration and noise in joint systems while solving interface displacement, axial expansion, and pipeline misalignment issues.
  2. Customizable material options for resistance to acids, alkalis, corrosion, oils, and heat to suit various media and environments.
  3. Polar rubber construction provides excellent sealing, lightweight design, easy installation/maintenance, and long service life (avoid sharp objects).
  4. For overhead installation, elastic brackets are recommended with diagonal bolt tightening.
  5. For high-pressure pipelines, limit bolts should connect both flange ends.
Technical Specifications
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
mm inch Elongation Compression
321 1/49569915°
401 1/295610915°
5021057101015°
652 1/21157131115°
8031358151215°
100415010191315°
125516512191315°
150618012201415°
200821016252215°
2501023016252215°
3001224516252215°
3501425516252215°
4001625516252215°
4501825516252215°
5002025516252215°
6002426016252215°
7002826016252215°
8003226016252215°
9003626016252215°
10004026018262415°
12004826018262415°
14005635020282615°
16006435025353010°
18007235025353010°
20008042025353010°
22008842025353010°
24009642025353010°
260010445025353010°
280011245025353010°
300012050025353010°
Product Overview
6In Flexible Expansion Joint Single Ball Carbon Steel EPDM Expansion Joint 0
Frequently Asked Questions
What is your delivery time?
It depends on the quantity, but usually no more than 20 working days.
What is your packing method?
Wrap it in plastic film first, then put it into a carton, and then put it into a wooden case.
Are you a trading company or a manufacturer?
We are a factory producing rubber expansion joints, duckbill valves, corrugated compensators, and we have more than 20 years of experience.
Can we choose different materials?
Yes, the material can be selected according to your requirements.
