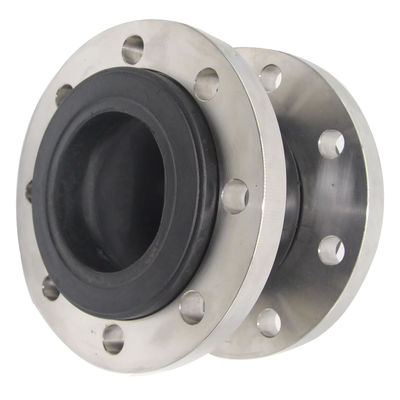

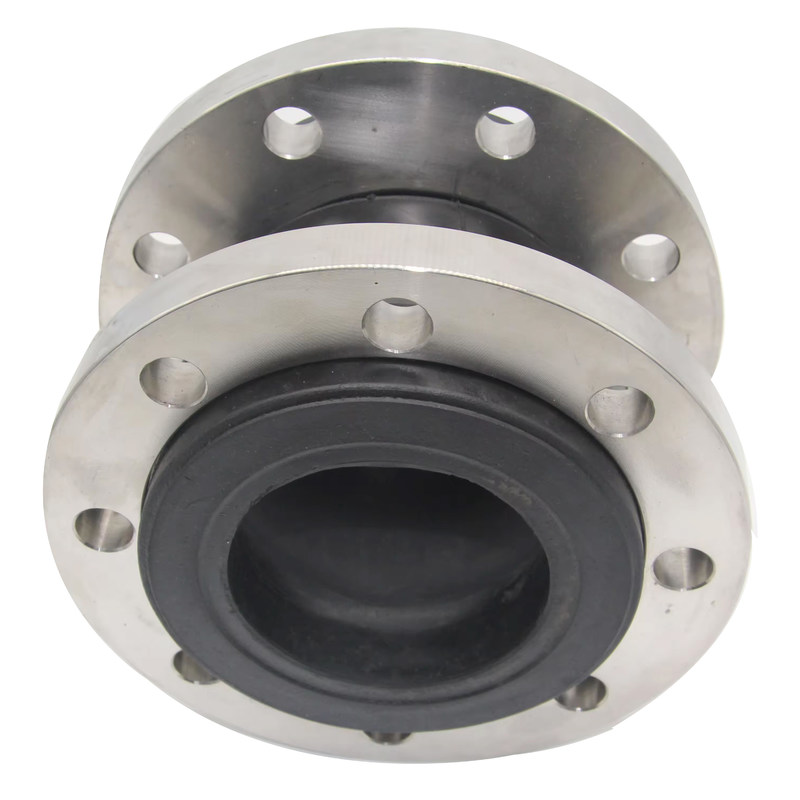

Dn300 Pn16 Ss304 Flanged Epdm Single Arch Expansion Joint Rubber Flexible Joint

Dn300 Pn16 Ss304 Flanged Epdm Single Arch Expansion Joint Rubber Flexible Joint
Dn300 Pn16 Ss304 Flanged Epdm Single Arch Expansion Joint Rubber Flexible Joint Dn300 Pn16 Ss304 Flanged Epdm Single Arch Expansion Joint Rubber Flexible Joint

Large Image :  Dn300 Pn16 Ss304 Flanged Epdm Single Arch Expansion Joint Rubber Flexible Joint

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄16.9-55.4 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10000 piece per month
Contact Now Chat Now

Dn300 Pn16 Ss304 Flanged Epdm Single Arch Expansion Joint Rubber Flexible Joint

Description
Pressure: PN6 - PN40 Size: DN32-DN3000
Flange Standard: DIN,JIS,ANSI,GB,etc Material Of Flange: Carbon Steel,cast Steel,cast Iron,SS304.ss316
Application: Oil,Air,Water,Acid And Alkali,etc Working Temperature: -20℃~150℃
Test Pressure: 1.5 Times Of Working Pressure Explosion Pressure: 2 Times Of Working Pressure
Stock: A Large Of Stock
Highlight:

dn300 rubber flexible joint

,

dn300 single arch expansion joint

,

pn16 rubber flexible joint

DN300 PN16 SS304 Flanged EPDM Single Arch Expansion Joint Rubber Flexible Joint
Product Description
DN300 PN16 SS304 Flanged EPDM Single Sphere Flexible Rubber Expansion Joint is designed for superior performance in demanding industrial applications.
Product Features
  • Exceptional compressive resistance, impact resistance, and elasticity with shock absorption and anti-slip properties
  • Excellent weather resistance and temperature tolerance with UV protection characteristics
  • Environmentally safe, non-toxic material that resists microbial growth
  • Available in diverse specifications to meet project requirements
Product Applications
Ideal for raw water and sewage transportation, thermal power plant feed systems, chemical pipeline transport in metallurgy, petrochemical industry connections, and various industrial applications requiring flexible pipeline connections.
Sphere Material Composition
Constructed with an inner rubber layer, reinforcing layer, multi-layer nylon cord fabric, and outer rubber layer. Available in various rubber materials including EPDM, natural rubber, nitrile, neoprene, and fluorocarbon, each offering specific resistance properties for different media.
Product Specifications
Product Name DN300 PN16 SS304 Flanged EPDM Single Sphere Flexible Rubber Expansion Joint
Structure Inner and outer rubber, nylon cord fabric, steel wire and flange
Rubber Material EPDM, NR, NBR, PTFE, FPM, etc.
Flange Material SS304, SS316, carbon steel, ductile iron, etc.
Flange Standard DIN, BS, ANSI, JIS, etc.
Job Attributes
Working Pressure (kg f/cm²) 1.0(10) | 1.6(16) | 2.5(25)
Explosion Pressure (kg f/cm²) 3.0(30) | 4.8(48) | 5.5(55)
Applicable Temperature -20℃ to 150℃
Applicable Media Water, industrial sewage, petroleum, chemicals, lime mortar, food, beverages, etc.
Dn300 Pn16 Ss304 Flanged Epdm Single Arch Expansion Joint Rubber Flexible Joint 0 Dn300 Pn16 Ss304 Flanged Epdm Single Arch Expansion Joint Rubber Flexible Joint 1
Frequently Asked Questions
Can you make the product as per client's requirement?
Yes, we can manufacture to your exact specifications.
Where is your nearest loading port?
Shanghai, Qingdao or Tianjin in China.
Do you accept small quantity orders?
Yes, we accommodate orders of all sizes.
How can you guarantee the quality or any warranty?
We stand behind our products with a quality guarantee - defective items can be returned or replaced according to customer requirements.
