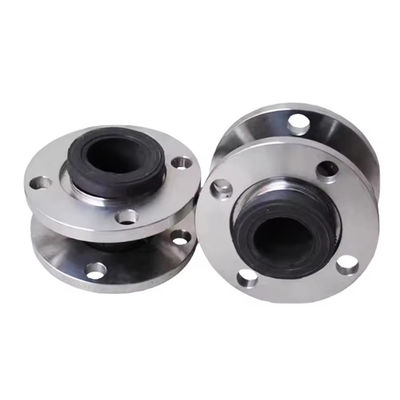

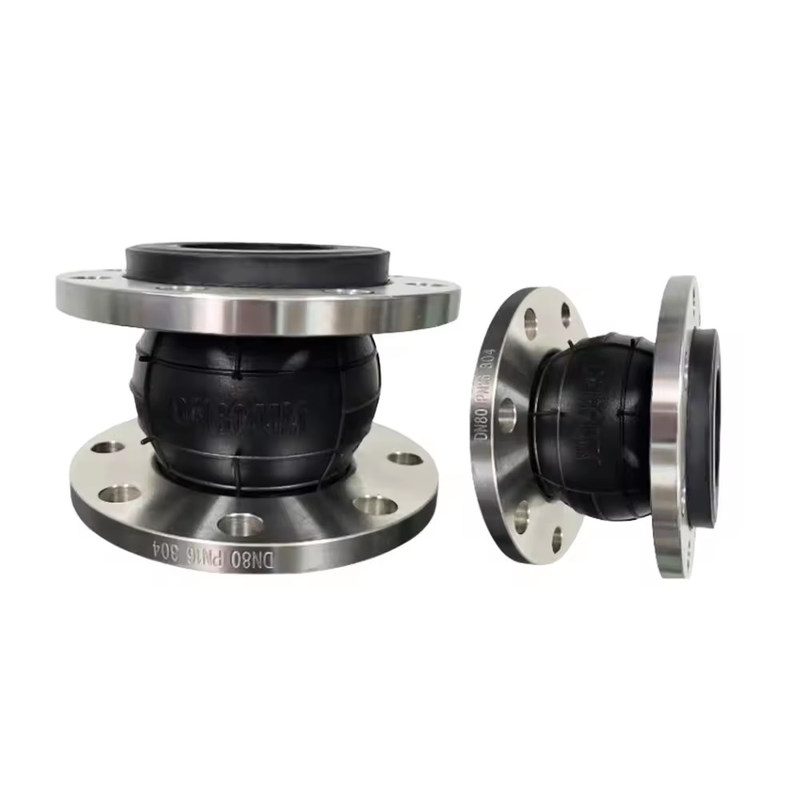

BS 4504 Ball Joints Spherical Bellows Flexible Expansion Joints EPDM Single Flange

BS 4504 Ball Joints Spherical Bellows Flexible Expansion Joints EPDM Single Flange
BS 4504 Ball Joints Spherical Bellows Flexible Expansion Joints EPDM Single Flange BS 4504 Ball Joints Spherical Bellows Flexible Expansion Joints EPDM Single Flange

Large Image :  BS 4504 Ball Joints Spherical Bellows Flexible Expansion Joints EPDM Single Flange

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄23.6-34.5 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10000 piece per month
Contact Now Chat Now

BS 4504 Ball Joints Spherical Bellows Flexible Expansion Joints EPDM Single Flange

Description
Customized Support: OEM, ODM Model Number: DN32-DN3000
Connection: Flange Rubber Material: EPDM, NR, NBR, Etc
Flange Material: CS, Stainless Steel 304, 316 Etc Flange Standard: ANSI, DIN, JIS, Etc
Drawing: Offer Application: Water Treatment , Metallurgy , Shipbuilding
Overall Length: From 95 To 500mm
Highlight:

flexible expansion joints epdm

,

bs flexible expansion joints

,

bs flexible rubber expansion joints

BS 4504 Ball Joints Spherical Bellows Flexible Expansion Joints EPDM Single Flange
Product Description

BS 4504 Ball Joints EPDM Single Flange Spherical Bellows Flexible Expansion Joints are essential components for pipeline systems, offering superior flexibility and durability.

Key Functions of Rubber Joints
  • Shock absorption and noise reduction: Effectively absorbs pipeline vibrations and shocks, reducing system noise and protecting connected equipment.
  • Prevent media leakage: Excellent sealing performance prevents pipeline media leakage, ensuring environmental safety.
  • Protective equipment: Reduces vibration and noise to extend the service life of pumps, valves, and other connected equipment.
  • Easy installation: Simple to install and maintain with flange or threaded connections for various requirements.
  • Damping effect: Provides protection during natural disasters by reducing pipeline vibration and damage.
Installation Guidelines
  • Do not exceed displacement limits during installation.
  • Tighten mounting bolts symmetrically and gradually to prevent leaks.
  • For pressures ≥1.6MPa, use elastic pressure pads with bolts to prevent loosening.
  • When installed vertically, provide proper support or anti-pull devices.
  • Keep away from heat sources, ozone areas, and strong radiation.
  • Avoid cutting surfaces or sealing faces with sharp instruments.
Technical Specifications
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
32 mm (1 1/4") 95 6 9 15°
40 mm (1 1/2") 95 6 10 15°
50 mm (2") 105 7 10 15°
65 mm (2 1/2") 115 7 13 15°
80 mm (3") 135 8 15 15°
100 mm (4") 150 10 19 15°
125 mm (5") 165 12 19 15°
150 mm (6") 180 12 20 15°
200 mm (8") 210 16 25 15°
250 mm (10") 230 16 25 15°
300 mm (12") 245 16 25 15°
350 mm (14") 255 16 25 15°
400 mm (16") 255 16 25 15°
450 mm (18") 255 16 25 15°
500 mm (20") 255 16 25 15°
600 mm (24") 260 16 25 15°
700 mm (28") 260 16 25 15°
800 mm (32") 260 16 25 15°
900 mm (36") 260 16 25 15°
1000 mm (40") 260 18 26 15°
1200 mm (48") 260 18 26 15°
1400 mm (56") 350 20 28 15°
1600 mm (64") 350 25 35 10°
Product Composition
BS 4504 Ball Joints Spherical Bellows Flexible Expansion Joints EPDM Single Flange 0 BS 4504 Ball Joints Spherical Bellows Flexible Expansion Joints EPDM Single Flange 1
Frequently Asked Questions
Q: Do you provide samples for free?
A: Yes, we can offer samples free of charge, but shipping costs are covered by the customer.
Q: Is quality warranty offered?
A: Yes, we provide a 1-year free warranty and support third-party testing.
Q: Can you provide drawings and technical data?
A: Yes, our technical department will provide professional drawings and technical specifications.
Q: How can we guarantee quality?
A: We provide samples before mass production and conduct final inspections before shipping.
