Carbon Steel Flanged Flexible Epdm Rubber Expansion Joint Bellow Dn100 Pn16 Chemical Acid Alkali Resistant

Carbon Steel Flanged Flexible Epdm Rubber Expansion Joint Bellow Dn100 Pn16 Chemical Acid Alkali Resistant
Carbon Steel Flanged Flexible Epdm Rubber Expansion Joint Bellow Dn100 Pn16 Chemical Acid Alkali Resistant Carbon Steel Flanged Flexible Epdm Rubber Expansion Joint Bellow Dn100 Pn16 Chemical Acid Alkali Resistant

Large Image :  Carbon Steel Flanged Flexible Epdm Rubber Expansion Joint Bellow Dn100 Pn16 Chemical Acid Alkali Resistant

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄23.6-36.9 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-15 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 12000 piece per month
Contact Now Chat Now

Carbon Steel Flanged Flexible Epdm Rubber Expansion Joint Bellow Dn100 Pn16 Chemical Acid Alkali Resistant

Description
Warranty: 1 Year Connection: Flange
Rubber Material: NR,NBR,EPDM Flange Material: Carbon Steel / SS304 / SS316
Medium: Seawater/oil/natural Gas/acid/alkali Rubber Joint Model: DN32----DN3000
Standard: DIN/ANSI/JIS/BS Feature: Elongation/compression/reduction Vibration
Stock: A Large Of Stock
Highlight:

epdm expansion rubber joint

,

dn100 expansion rubber joint

,

dn100 epdm rubber expansion joint

Carbon Steel Flanged Flexible EPDM Rubber Expansion Joint Bellow DN100 PN16 Chemical Acid Alkali Resistant
Product Description

DN100 PN16 Chemical Acid Alkali Resistant Carbon Steel Flanged Flexible EPDM Expand Bellow Compensator

Product Presentation

The single ball rubber joint is primarily used in pipelines to reduce vibration and noise, offering excellent scalability and ease of use. Also known as single ball rubber soft joint, shock absorber, or pipeline shock absorber, this product features high elasticity, air tightness, medium resistance, and climate resistance.

Manufactured using rubber's elasticity, air tightness, and resistance to medium, weather, and radiation, the joint incorporates high-strength polyester cord fabric for thermal stability. It undergoes high-pressure, high-temperature vulcanization molding for durability.

Key Characteristics
  • Compact size, lightweight design, and excellent flexibility for easy installation and maintenance
  • Accommodates transverse, axial, and angular displacement without pipe centering or parallel flange restrictions
  • Effectively reduces structure-transmitted noise with strong vibration absorption capabilities
  • High pressure resistance, superior elasticity, and large displacement capacity to balance pipeline deviations
  • Exceptional vibration damping and noise reduction, solving various pipeline interface displacement and axial expansion issues
Product Parameters
Working Pressure (kg f/cm²) 1.0(10) 1.6(16) 2.5(25)
Explosion Pressure (kg f/cm²) 3.0(30) 4.8(48) 5.5(55)
Applicable Temperature -20℃ to 150℃
Applicable Media Water (domestic/industrial sewage), petroleum, chemical raw materials, lime mortar, food, beverages
Material Composition
No Name Material
1 Outer/Inner Rubber EPDM, NR, NBR
2 Frame Nylon cord
3 Pressurized Ring Steel wire or stainless steel
4 Flange SS304, SS316, carbon steel, ductile iron

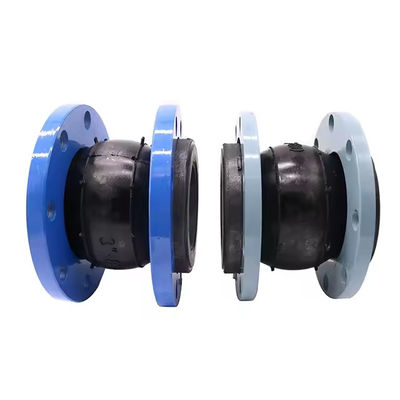

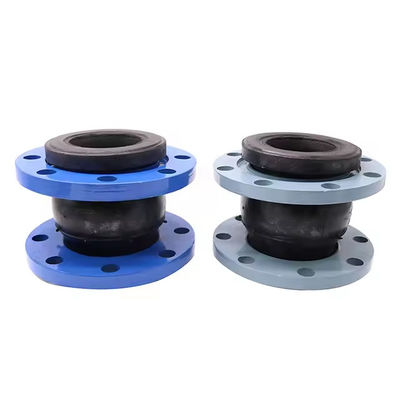

Product Images
Carbon Steel Flanged Flexible Epdm Rubber Expansion Joint Bellow Dn100 Pn16 Chemical Acid Alkali Resistant 0 Carbon Steel Flanged Flexible Epdm Rubber Expansion Joint Bellow Dn100 Pn16 Chemical Acid Alkali Resistant 1
Frequently Asked Questions
Q: How can we guarantee quality?
A: We provide samples before mass production and conduct final inspections before shipping.
Q: Can you provide drawings and technical data?
A: Yes, our technical department will design and supply all necessary drawings and technical specifications.
Q: Is quality warranty offered?
A: Yes, we provide a 1-year free warranty and support third-party testing.
Q: What else can we buy from you?
A: We also manufacture Rubber Expansion Joints, Metal Expansion Joints, Metal Braided Hoses, and Bellow Expansion Joints.
Q: Do you have your own factory? Can we visit it?
A: Yes, we welcome visits to our manufacturing facility.
