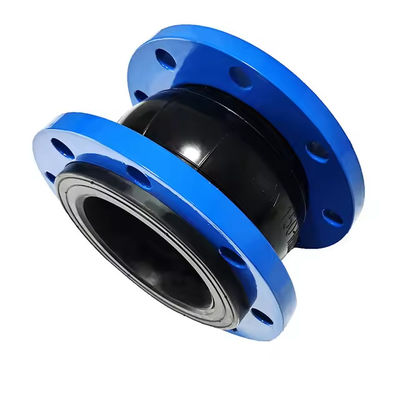

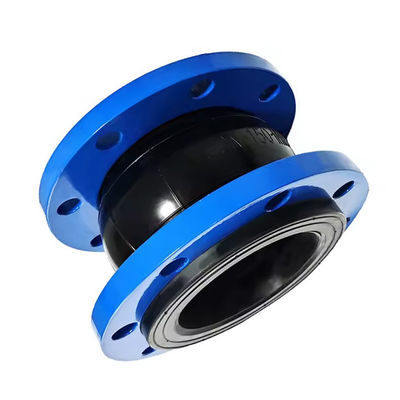

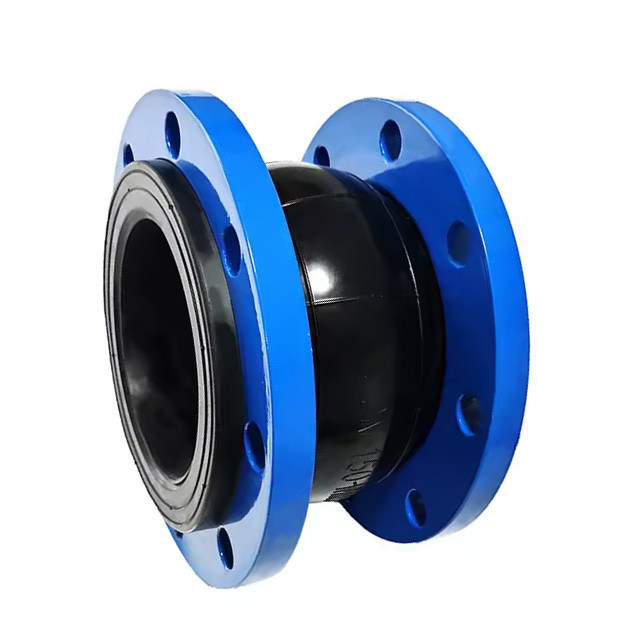

Stainless Steel Flange Single Ball Rubber Joint Flexible Bellow Anti Vibration

Stainless Steel Flange Single Ball Rubber Joint Flexible Bellow Anti Vibration
Stainless Steel Flange Single Ball Rubber Joint Flexible Bellow Anti Vibration Stainless Steel Flange Single Ball Rubber Joint Flexible Bellow Anti Vibration Stainless Steel Flange Single Ball Rubber Joint Flexible Bellow Anti Vibration

Large Image :  Stainless Steel Flange Single Ball Rubber Joint Flexible Bellow Anti Vibration

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄5.2-89.6 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 12000 piece per month
Contact Now Chat Now

Stainless Steel Flange Single Ball Rubber Joint Flexible Bellow Anti Vibration

Description
Overall Length: From 95 To 500mm Working Pressure: PN10/PN16/PN25
Nominal Size: DN32 - DN3000mm Standard Of Flange: DIN, ANSI, BS, ISO, JIS
Applicable Media: Air, Water, Oil, Weak Acid And Alkali, Juice Etc. Export Countries: Canada, America, Australia, Chile, Malaysia, Philippine Etc
Warranty: 1 Year Drawing: Offer
Stock: A Large Of Stock
Highlight:

single ball single sphere rubber joint

,

anti vibration single ball rubber joint

,

anti vibration single sphere rubber joint

Stainless Steel Flange Single Ball Rubber Joint Flexible Bellow Anti-Vibration
Why Choose Our Rubber Joints?
  • Simple and convenient installation with gate valve compatibility, capable of withstanding pipeline axial tensile force
  • Constructed with metal composite forging or welded connections, featuring lofting flange with ladder sealing gasket ring
  • Designed with small compression deformation concept for effective rotary sealing
  • Manufactured to strict performance parameters with customer-specified sealing rings and high-toughness anti-corrosion paint
  • Reduces pipeline driving force and blind plate pressure while facilitating pump/valve maintenance
Key Characteristics
  • Compact size with lightweight design for easy installation and maintenance
  • Accommodates lateral, axial, and angular displacement without centerline restrictions
  • Effective noise reduction with strong vibration damping capabilities
  • High pressure resistance with excellent elasticity and large displacement capacity
  • Balances pipeline deviation while providing superior vibration absorption
Technical Specifications
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
32 mm (1 1/4") 95 6 9 15°
40 mm (1 1/2") 95 6 9 15°
50 mm (2") 105 7 10 15°
65 mm (2 1/2") 115 7 11 15°
80 mm (3") 135 8 12 15°
100 mm (4") 150 10 13 15°
125 mm (5") 165 12 13 15°
150 mm (6") 180 12 14 15°
200 mm (8") 210 16 22 15°
250 mm (10") 230 16 22 15°
300 mm (12") 245 16 22 15°
350 mm (14") 255 16 22 15°
400 mm (16") 255 16 22 15°
450 mm (18") 255 16 22 15°
500 mm (20") 255 16 22 15°
600 mm (24") 260 16 22 15°
700 mm (28") 260 16 22 15°
800 mm (32") 260 16 22 15°
900 mm (36") 260 16 22 15°
1000 mm (40") 260 18 24 15°
1200 mm (48") 260 18 24 15°
1400 mm (56") 350 20 26 15°
1600 mm (64") 350 25 30 10°
Product Superiority
Stainless Steel Flange Single Ball Rubber Joint Flexible Bellow Anti Vibration 0
Product Packaging
Stainless Steel Flange Single Ball Rubber Joint Flexible Bellow Anti Vibration 1
Frequently Asked Questions
Can you make the product as per client's requirement?
Yes, we can manufacture according to your exact specifications.
Where is your nearest loading port?
Shanghai, Qingdao or Tianjin in China.
How can you guarantee the quality or any warranty?
We offer product returns or solutions according to customer requests for any quality issues.
Can we choose different material?
Yes, materials can be selected according to your specific requirements.
What is your shipment and delivery time?
Shipping by sea or air. Delivery typically takes 7-14 days depending on order quantity.
Can I visit your factory before the order?
Yes, we welcome factory visits to inspect our production quality.
