Easy Installation Single Sphere Rubber Expansion Joint For Pipeline System

Easy Installation Single Sphere Rubber Expansion Joint For Pipeline System
Easy Installation Single Sphere Rubber Expansion Joint For Pipeline System Easy Installation Single Sphere Rubber Expansion Joint For Pipeline System

Large Image :  Easy Installation Single Sphere Rubber Expansion Joint For Pipeline System

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄16.8-60.5 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-5day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 12000 piece per month
Contact Now Chat Now

Easy Installation Single Sphere Rubber Expansion Joint For Pipeline System

Description
Item: Afa Flex Rubber Expansion Joint Working Pressure: 1.0-2.5Mpa
Warranty Time: 12 Months Stock: A Large Of Stock
Sample: Free Sample Material Of Flange: Carbon Steel,cast Steel,cast Iron,SS304.ss316
Customized Support: OEM Size: DN32-DN3000
Standard Of Flange: DIN, ANSI, BS
Highlight:

Pipeline afa flex rubber expansion joint

,

OEM rubber soft joint

,

Pipeline Single Sphere Rubber Expansion Joint

Easy Installation Single Sphere Rubber Expansion Joint For Pipeline System
Product Description
The single sphere rubber expansion joint, also known as rubber soft joint or shock absorber, is a high-performance pipe connector offering exceptional flexibility, tightness, medium resistance, and weather resistance. Manufactured using premium rubber elasticity combined with nylon cord reinforcement, this product undergoes high-pressure, high-temperature vulcanization for superior durability.
Key Features
  • Compact design with lightweight construction for easy installation and maintenance
  • Accommodates transverse, axial, and angular displacements during installation
  • Effectively reduces noise transmission and absorbs strong vibrations
  • Compensates for pipeline misalignment and non-parallel flange connections
Applications
Ideal for various industrial systems including water supply, drainage, circulating water, paper manufacturing, petrochemical processing, marine applications, and compressor/pump/fan pipeline systems. Offers excellent performance in high-pressure environments with vibration absorption capabilities.
Material Composition
NO NAME Material
1 Outer/inner rubber EPDM, NR, NBR
2 Frame Nylon cord
3 Pressurized ring Steel wire or stainless steel
4 Flange SS304, SS316, carbon steel, ductile iron, etc.
Technical Specifications
Parameter 1.0(10) 1.6(16) 2.5(25)
Working pressure (kg f/cm²) 1.0(10) 1.6(16) 2.5(25)
Explosion pressure (kg f/cm²) 3.0(30) 4.8(48) 5.5(55)
Applicable Temperature -20℃ to 150℃
Applicable Media Water (domestic sewage), industrial sewage, petroleum, chemical raw materials, lime mortar, food, beverage, etc.
Product Illustration

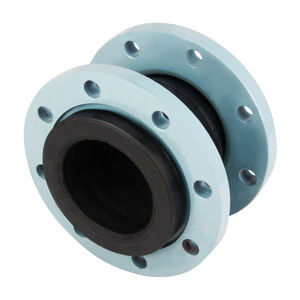

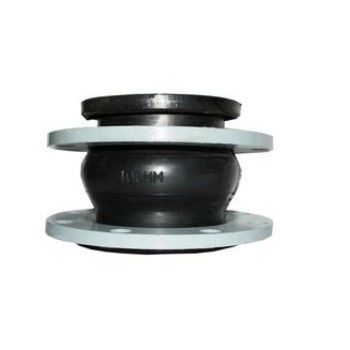

Easy Installation Single Sphere Rubber Expansion Joint For Pipeline System 0
Manufacturing Facility
Easy Installation Single Sphere Rubber Expansion Joint For Pipeline System 1
Frequently Asked Questions
Does the rubber joint have inspection report?
Yes, all products undergo hydro testing and include a qualified inspection report before leaving our facility.
Can you offer the drawing?
Our engineering team provides professional technical drawings and comprehensive support for all projects.
What else can we buy from you?
We offer a complete range of pipeline solutions including Rubber Expansion Joints, Metal Expansion Joints, Metal Braided Hoses, Bellow Expansion Joints, and Dismantling Joints.
How to order the products?
Please send your inquiry with detailed product specifications or model numbers for prompt processing.
How about your after-sales service?
As the manufacturer, we provide ongoing technical support and promptly address all customer inquiries and concerns.
