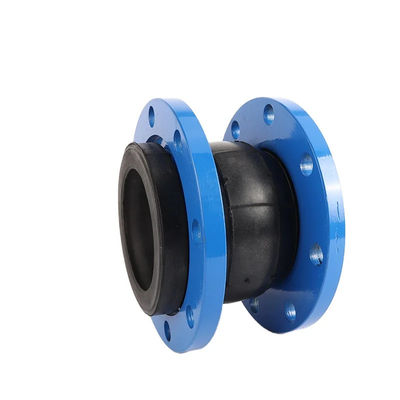

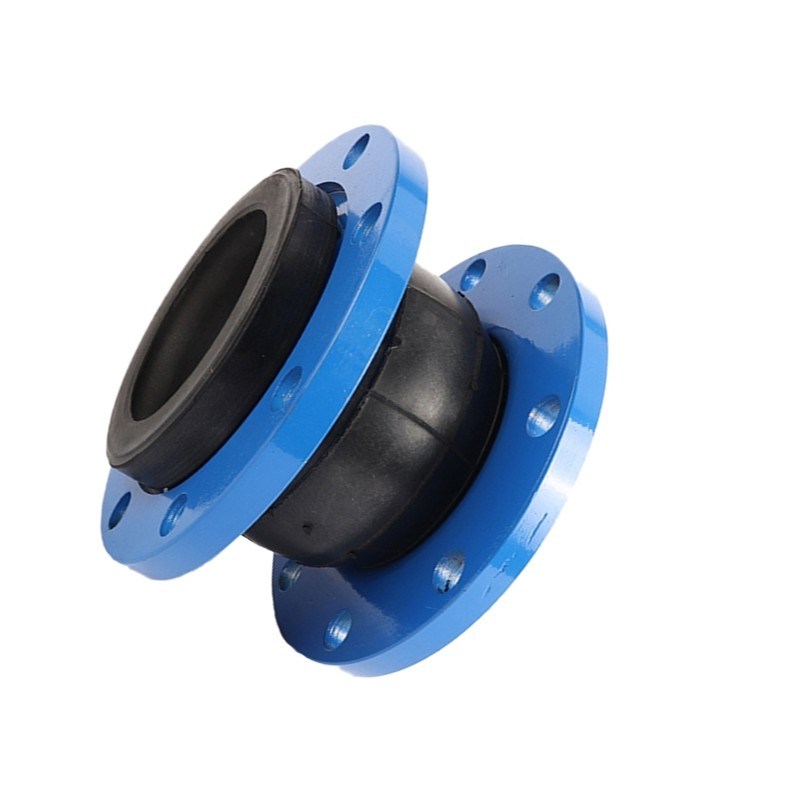

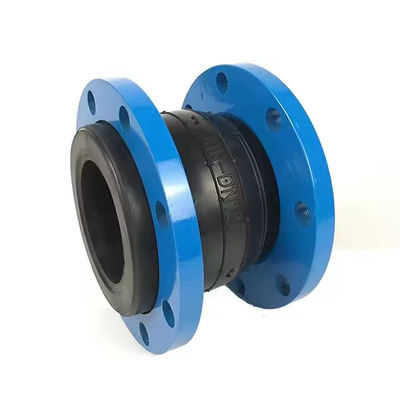

Epdm Flexible Pn16 Flange Rubber Bellows Expansion Joints single ball Pipe Connector

Epdm Flexible Pn16 Flange Rubber Bellows Expansion Joints single ball Pipe Connector
Epdm Flexible Pn16 Flange Rubber Bellows Expansion Joints single ball Pipe Connector Epdm Flexible Pn16 Flange Rubber Bellows Expansion Joints single ball Pipe Connector Epdm Flexible Pn16 Flange Rubber Bellows Expansion Joints single ball Pipe Connector

Large Image :  Epdm Flexible Pn16 Flange Rubber Bellows Expansion Joints single ball Pipe Connector

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄12.8-63.5 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 12000 piece per month
Contact Now Chat Now

Epdm Flexible Pn16 Flange Rubber Bellows Expansion Joints single ball Pipe Connector

Description
Customized Support: OEM Flange Surface: Carbon Steel/SS304/SS316
Size: DN32-DN3000 Test Pressure: 1.5 Times Of Working Pressure
Explosion Pressure: 2 Times Of Working Pressure Manufacturer: Yes, Factory Add: Gongyi City,China
Connection: Flange Installation Manual: Offer
Export Countries: Canada, America, Australia，etc.
Highlight:

rubber bellows expansion joints single ball

,

epdm rubber expansion bellows

,

epdm rubber bellows expansion joints

EPDM Flexible PN16 Flange Rubber Bellows Expansion Joints Single Ball Pipe Connector
Top Compensator Pipe Connector High Quality EPDM Flexible PN16 Flange Rubber Bellows Expansion Joints
Structural Characteristics of Flanged Rubber Expansion Joint
  • The single ball flexible rubber joint significantly reduces pipeline system vibration and noise, solving interface displacement, axial expansion, and concentricity issues.
  • Available in various materials to resist acid, alkali, corrosion, oil, and heat for diverse media and environments.
  • Constructed from polar rubber for excellent sealing, lightweight design, easy installation/maintenance, and long service life (avoid contact with sharp metal instruments).
  • For overhead use, elastic support is recommended with diagonal bolt tightening during installation.
  • For high-pressure pipelines, limit bolts can connect both flange ends together.
  • Flange connection standard: GB/T 17241.6. Rated working pressures: 0.25, 0.6, 1.0, 1.6, 2.5, 4.0, 6.4 MPa.
Composition of Flange Type Rubber Expansion Joint

Comprises a colloid and two looping flanges. The colloid features inner/outer synthetic rubber layers, nylon cord skeleton, and pressurized steel ring, vulcanized at high temperature using air blowing mold process.

Flange Size Table
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
32 mm (1 1/4") 95 6 9 15°
40 mm (1 1/2") 95 6 10 15°
50 mm (2") 105 7 10 15°
65 mm (2 1/2") 115 7 13 15°
80 mm (3") 135 8 15 15°
100 mm (4") 150 10 19 15°
125 mm (5") 165 12 19 15°
150 mm (6") 180 12 20 15°
200 mm (8") 210 16 25 15°
250 mm (10") 230 16 25 15°
300 mm (12") 245 16 25 15°
350 mm (14") 255 16 25 15°
400 mm (16") 255 16 25 15°
450 mm (18") 255 16 25 15°
500 mm (20") 255 16 25 15°
600 mm (24") 260 16 25 15°
700 mm (28") 260 16 25 15°
800 mm (32") 260 16 25 15°
900 mm (36") 260 16 25 15°
1000 mm (40") 260 18 26 15°
1200 mm (48") 260 18 26 15°
Rubber Joint Material Table
Epdm Flexible Pn16 Flange Rubber Bellows Expansion Joints single ball Pipe Connector 0
No Name Material
1 Outer/Inner Rubber EPDM, NR, NBR
2 Frame Nylon Cord
3 Pressurized Ring Steel Wire or Stainless Steel
4 Flange SS304, SS316, Carbon Steel, Ductile Iron, etc.
Displacement Diagram
Epdm Flexible Pn16 Flange Rubber Bellows Expansion Joints single ball Pipe Connector 1
Inventory Display
Epdm Flexible Pn16 Flange Rubber Bellows Expansion Joints single ball Pipe Connector 2
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer of rubber expansion joints, bellow expansion joints, flexible metal hoses, and related products with over 20 years of experience.
Do you accept small orders?
Yes, we welcome all business sizes and look forward to establishing long-term relationships with our customers.
Do you have inspection procedures for the products?
All products undergo 100% self-inspection before packing.
How about the price? Can you make it cheaper?
We prioritize customer benefits and offer competitive, negotiable pricing based on order conditions.
Can products be manufactured to customer requirements?
Yes, we can customize designs and specifications beyond our standard offerings.
