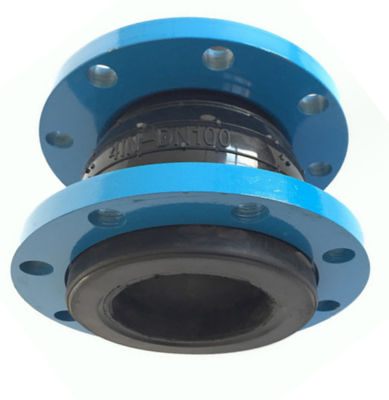

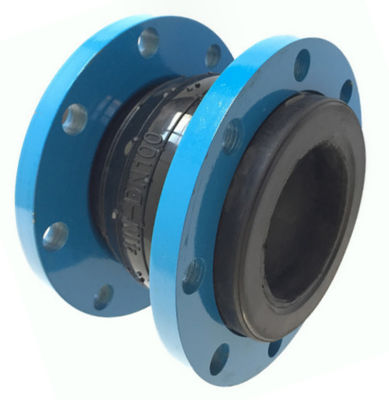

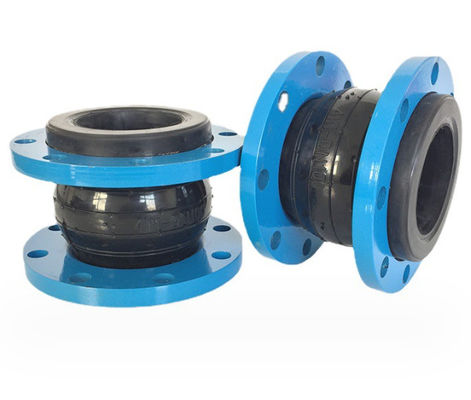

OEM Single Sphere Expansion Bellows Rubber Carbon Steel Flanged Rubber Flex Joint

OEM Single Sphere Expansion Bellows Rubber Carbon Steel Flanged Rubber Flex Joint
OEM Single Sphere Expansion Bellows Rubber Carbon Steel Flanged Rubber Flex Joint OEM Single Sphere Expansion Bellows Rubber Carbon Steel Flanged Rubber Flex Joint OEM Single Sphere Expansion Bellows Rubber Carbon Steel Flanged Rubber Flex Joint

Large Image :  OEM Single Sphere Expansion Bellows Rubber Carbon Steel Flanged Rubber Flex Joint

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $14-28.7 per set
Packaging Details: cartons,wooden cases
Delivery Time: 5-8 work days
Payment Terms: T/T, D/A, D/P, Western Union, L/C, MoneyGram
Supply Ability: 12000 per set
Contact Now Chat Now

OEM Single Sphere Expansion Bellows Rubber Carbon Steel Flanged Rubber Flex Joint

Description
Product Name: Rubber Flexible Joint Rubber Material: NR, EPDM, NBR, Neoprene Etc
Flange Joint Material: CS, SS304, SS316 Etc Customized Support: OEM,ODM, Flange Marking, Rubber Body Marking, Carton Case Packing Etc.
Warranty: 1year Drawing: Offer
Connection: Flange/union
Highlight:

expansion bellows rubber carbon steel

,

oem rubber flex joint

,

oem expansion bellows rubber

OEM Single Sphere Expansion Bellows Rubber Carbon Steel Flanged Rubber Flex Joint
Factory Price Single Sphere Rubber Expansion Joint Carbon Steel Flanged Connector

The rubber joint is composed of inner and outer rubber layer, nylon cord fabric and steel ring, which is vulcanized and then combined with metal flange or parallel joint loose sleeve.

The product can reduce vibration and noise, and can compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.

Product Description

Single sphere rubber joint, also known as rubber soft joint, pipe shock absorber, shock absorber throat, etc., is a pipe joint with high elasticity, high air tightness, medium resistance and weather resistance. It utilizes the advantages of rubber such as elasticity, high air tightness, medium resistance, weather resistance and radiation resistance, and is compounded with high-strength, hot and cold stable polyester cord fabric by diagonal cross-linking, and then vulcanized by high-pressure and high-temperature mold.

Performance Characteristics
  • Reduce displacement
  • Improve thermal stability
  • Release system strains caused by thermal variations, load stresses, pump pressure fluctuations, and sediment wear
Technical Specifications
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
32 mm (1 1/4") 95 6 9 15°
40 mm (1 1/2") 95 6 10 15°
50 mm (2") 105 7 10 15°
65 mm (2 1/2") 115 7 13 15°
80 mm (3") 135 8 15 15°
100 mm (4") 150 10 19 15°
125 mm (5") 165 12 19 15°
150 mm (6") 180 12 20 15°
200 mm (8") 210 16 25 15°
250 mm (10") 230 16 25 15°
300 mm (12") 245 16 25 15°
350 mm (14") 255 16 25 15°
400 mm (16") 255 16 25 15°
450 mm (18") 255 16 25 15°
500 mm (20") 255 16 25 15°
600 mm (24") 260 16 25 15°
700 mm (28") 260 16 25 15°
800 mm (32") 260 16 25 15°
900 mm (36") 260 16 25 15°
1000 mm (40") 260 18 26 15°
1200 mm (48") 260 18 26 15°
Application Field
OEM Single Sphere Expansion Bellows Rubber Carbon Steel Flanged Rubber Flex Joint 0
Frequently Asked Questions
Q1: What's the rubber material of flanged expand joint?
A1: EPDM, CR, NBR, etc. It depends on the working environment and media.
Q2: What's the working pressure of flanged rubber flexible joint?
A2: The working pressure can be 1.0Mpa, 1.6 Mpa, 2.5Mpa.
Q3: Can I get a sample?
A3: Of course. We could deliver by Express, by air or by sea.
Q4: What's the working temperature of flanged expand joint?
A4: The working temperature is -20℃~150℃.

Tag:

general rubber expansion joints,

Single Sphere Flex Connector,

flanged rubber expansion joint
