200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem

200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem

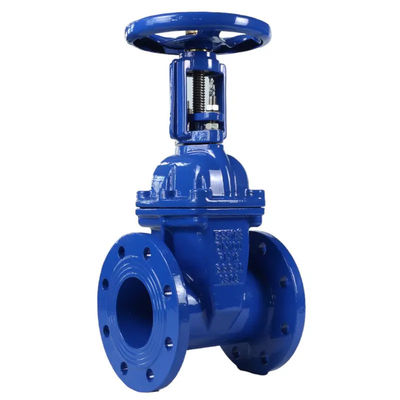

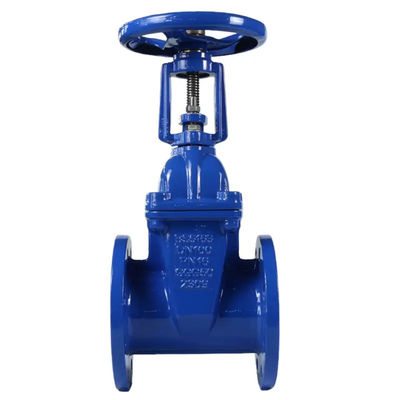

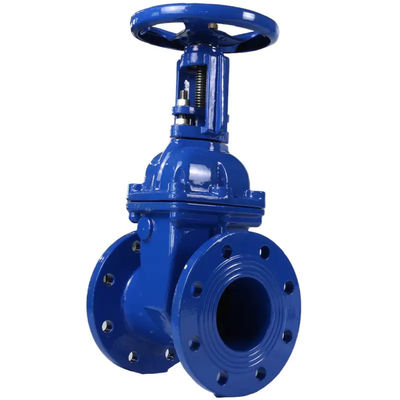

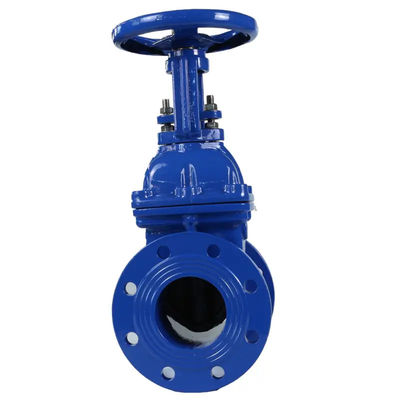

200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem 200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem 200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem 200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem

Large Image :  200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: Z41X
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄52.3-95.6 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10000 piece per month
Contact Now Chat Now

200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem

Description
Media: Water ,acid ,gas ,oil Etc. Working Pressure: PN10/16/25
Working Temperature: 0~80℃ Application: Municipal Construction, Water Conservancy Project, Etc.
Standard: ANSI,BS,DIN,JIS,etc Sample: Free Provided
OEM: Support
Highlight:

200mm PN16 Sluice Gate Valve

,

Sluice Gate Valve 8 Inch

,

Gate Valve 8 Inch Flanged Manual

200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem
Product Description
8 inch 200mm PN16 manual type flanged cast iron rising stem sluice gate valve
Product Introduction
The gate valve is a valve with opening and closing parts for the gate, with movement perpendicular to fluid direction. It can only be fully opened or closed, not adjusted for throttling. Gate valves are sealed by contact between seat and ram, with sealing surfaces typically overlaid with metal material for increased wear resistance.
Widely used in pipelines, especially where large-diameter shut-off devices are required. Advantages include:
  • Small flow resistance
  • Labor-saving opening and closing
  • Minimal water hammer phenomenon
  • Bidirectional medium flow capability
  • Compact construction
  • Excellent manufacturing process
  • Wide application range
Installation Instructions
  • Issue water stop notice before construction
  • Drain water from pipeline before installation
  • Ensure reliable power supply for construction
  • Never use hand wheel, handle or transmission mechanism for hoisting
  • Avoid collisions during installation
  • Lubricate valve monthly for frequent use
Product Parameters
200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem 0
Component Materials
NO Name Materials
1 Body Ductile iron
2 Disc EPDM+Ductile iron
3 Bonnet Gasket NBR
4 Stem AISI420 Stainless steel
5 Bonnet Ductile iron
6 Gland Ductile iron
7 Bolt AISI304 Stainless steel
8 Washer AISI304 Stainless steel
9 Nut AISI304 Stainless steel
10 Hand Wheel AISI304 Stainless steel
11 Nut CuZn39Pb1 Brass
12 Friction Pads AISI304 Stainless steel
13 Holder Ductile iron
14 Gasket POM
15 O Ring NBR
16 O Ring NBR
17 Washer Phenolic PF
18 Core Ductile iron
Technical Specifications
DN OUTLINE L M H END FLANGE PN10/16-CL 125/150 mm Switching Cycle Closing Torque (N.m)
40 165 φ200 290 127 98.5 4-φ16 19 14 30
50 178 φ200 290 152 120.5 4-φ19 19 14 40
65 190 φ200 350 178 139.5 4-φ19 22.3 17 50
80 203 φ200 375 191 152.5 4-φ19 23.8 20 60
100 229 φ254 450 229 190.5 8-φ19 23.8 21 80
125 254 φ315 510 254 216 8-φ22 23.8 26 100
150 267 φ315 585 279 241.5 8-φ22 25.4 26 120
200 292 φ315 735 343 298.5 8-φ22 28.6 34 150
250 330 φ406 875 406 362 12-φ25 30.2 43 200
300 356 φ406 1015 483 432 12-φ25 31.8 51 250
350 381 φ500 1210 535 476.5 12-φ28 35 51 300
400 406 φ500 1335 595 540 16-φ28 36.5 58 350
Inventory
200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem 1
Workshop Display
200mm PN16 Sluice Gate Valve 8 Inch Flanged Manual Type Rising Stem 2
Frequently Asked Questions
Q: What are your payment terms?
A: T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin in China.
Q: What is the temperature range for gate valves?
A: -20℃-120℃.
Q: Is it possible to make gate valves of different sizes?
A: Of course, the above are all regular sizes, and we can customize them according to customer requirements.
Q: Do you accept small quantity order?
A: Of course we do.
