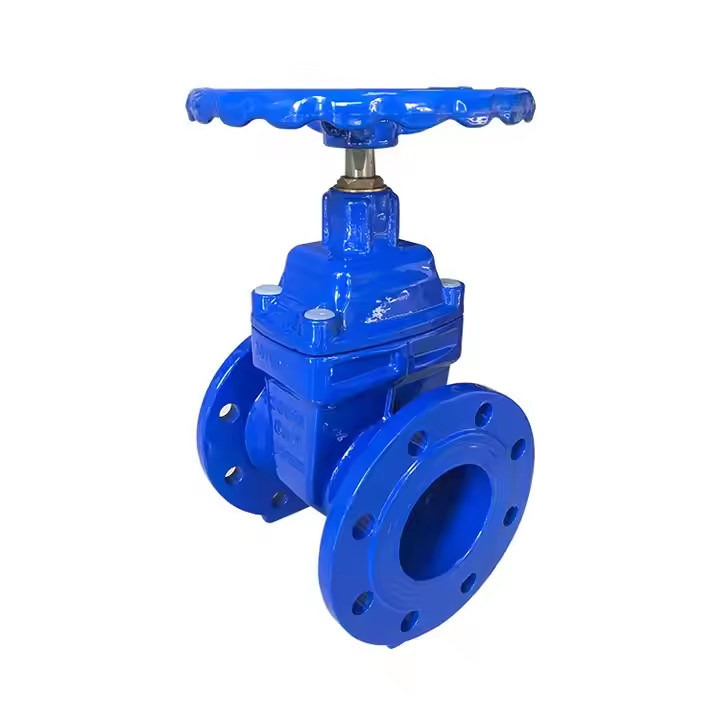

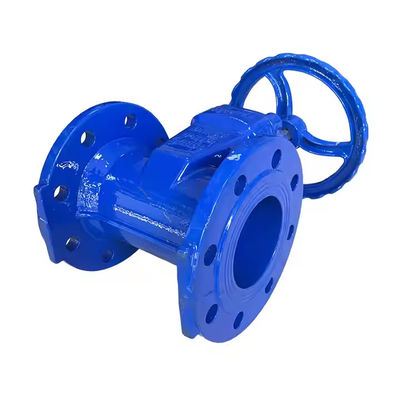

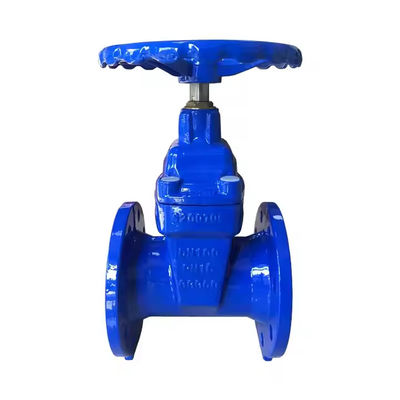

DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated

DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated
DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated

Large Image :  DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: Z45X
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄26.2-32.9 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated

Description
OEM: Accept Size: DN40-DN1200
Standard Or Nonstandard: Standard Media: Water
Power: Manual Application: General
Applicable Media: Fresh Water,sewage,etc.
Highlight:

DN80mm Ductile Iron Gate Valve

,

Ductile Iron Gate Valve PN16

,

PN16 OEM Di Gate Valve

DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated
DN80 PN16 handwheel operated ductile iron flange gate valve with excellent sealing performance.
Performance Characteristics
  • Low fluid resistance: Straight internal medium channel maintains flow direction for minimal resistance.
  • Small opening/closing torque: Gate plate moves perpendicular to medium flow for easier operation than globe valves.
  • Unrestricted flow direction: Medium can flow from either side, ideal for pipelines with potential flow direction changes.
Applications
  • Oil and gas industry: Fluid control in extraction, transportation, and processing systems.
  • Chemical industry: Flow control for chemicals, solvents, and corrosive media.
  • Water treatment: Water supply systems, sewage treatment, and industrial water facilities.
  • Power plants: Boilers, steam piping, and cooling water systems.
  • Marine engineering: Offshore platforms, ships, and subsea pipeline systems.
  • Pharmaceutical industry: Precise control of drugs, solutions, and production media.
Product Specifications
DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated 0
NO Name of part Material
1 Drive cap Ductile iron
2 Dust cap Ductile iron
3 "O"ring NBR
4 Bonnet NBR
5 Body Ductile iron
6 Handwheel Ductile iron
7 Shaft cover Ductile iron
8 Thrust bearing Brass/Bronze
9 Bolt 35
10 Stem 2Cr13
11 Copper nut Brass/Bronze
12 Disc Ductile iron/EPDM/NBR
Product Name Gate Valve
Material Cast Iron
Outlet Connection Type Flange
Working Temperature Normal
Our Service OEM/ODM
Packaging Details Standard Export Package or As Your Requirements
DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated 1
Product Packaging
DN80mm Ductile Iron Gate Valve PN16 OEM Di Gate Valve Resilient Seated 2
Frequently Asked Questions
Q: If products have some quality problem, how would you deal with?
A: We will be responsible for all the quality problems.
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What is the body material of the gate valve?
A: Ductile iron.
Q: How long is your delivery time?
A: It depends on the quantity, but usually no more than 20 working days.
Q: What are the standards for the flanges of your products?
A: We have ANSI, DIN, BS, etc.
Q: What is the minimum order quantity for this product?
A: Our MOQ is one piece, it depends on the product type and customer demand.
