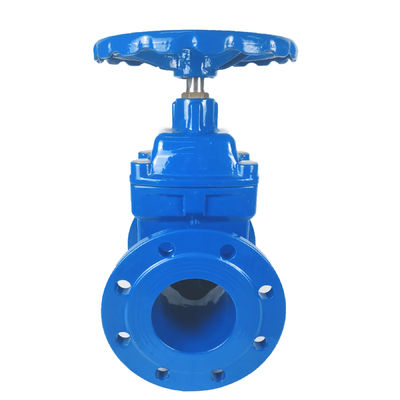

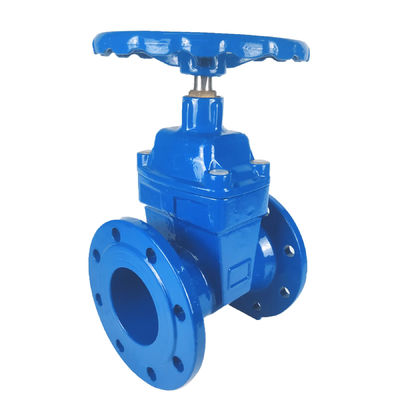

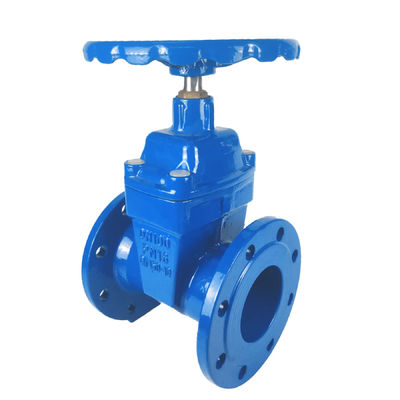

ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment

ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment
ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment

Large Image :  ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: Z45X
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄25.6-69.2 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment

Description
Warranty: 1 Year Nominal Pressure: PN10/16
Body Material: Stainless Steel,carbon Steel,cast Iron,etc. Suitable Medium: Water,weakly Corrosive Media,etc.
Applicable Fields: Water Treatment, Petrochemical, Food And Medicine, Electric Energy,etc Temperature: -20℃-120℃
Size: DN40-DN1200 Product Drawing: Offer
Feature: Long Life
Highlight:

PN16 Cast Iron Gate Valve

,

ANSI 150LB Cast Iron Gate Valve

,

Gate Valve Ductile Iron Resilient Seat

ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment
Product Description
ANSI 150LB PN16 ductile iron resilient seat cast iron gate valve
Functional Characteristics
  • Good sealing performance: Maintains small medium erosion in fully open state to ensure system tightness.
  • Low fluid resistance: Design minimizes flow resistance, improving fluid efficiency.
  • Labor-saving operation: Easier opening/closing compared to other valve types.
  • Wide adaptation range: Suitable for water, steam, oil, and oxidizing media with no flow direction limitations.
  • Simple structure: Cost-effective manufacturing and easy maintenance.
Installation Precautions
  • Never use handwheel, handle or transmission mechanism for lifting or allow collisions.
  • Double gate valves must be installed vertically (valve stem vertical, handwheel at top).
  • Open bypass valve first to balance pressure difference before opening main valve.
  • Follow product manual instructions for valves with transmission mechanisms.
  • Lubricate monthly for frequently operated valves.
  • For full open/close operation only - not suitable for throttling.
  • Clockwise rotation closes valve (counter-clockwise opens). No auxiliary levers permitted.
Product Parameters
ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment 0
DN NPS(INCH) L D D1 Z- φd
502''2501601254-18
652 1/2''2651801454-18
803''2801951608-18
1004''3002151808-18
1255''3252452108-18
1506''3502802408-22
2008''40033529512-22
25010''45040535512-26
30012''50046041012-26
35014''55052047016-26
40016''60058052516-30
Product Composition
ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment 1
Product Packaging
ANSI 150LB PN16 Cast Iron Gate Valve Ductile Iron Resilient Seat For Water Treatment 2
Frequently Asked Questions
Q: Can you make the product as per client's requirement?
A: Yes, we can manufacture according to your exact specifications.
Q: How can you guarantee the quality or any warranty?
A: We perform specification, material and appearance checks before delivery, support third-party inspection, and approve shipment only after qualification.
Q: Do you accept small quantity order?
A: Yes, we accommodate small quantity orders.
Q: Can I customize gate valves of different calibers?
A: Yes, we can produce valves according to customer specifications.
Q: What is the pressure of the gate valve?
A: Available in PN6, PN10, and PN16 pressure ratings.
Q: What is the body material of the gate valve?
A: The valve body is constructed from ductile iron.
