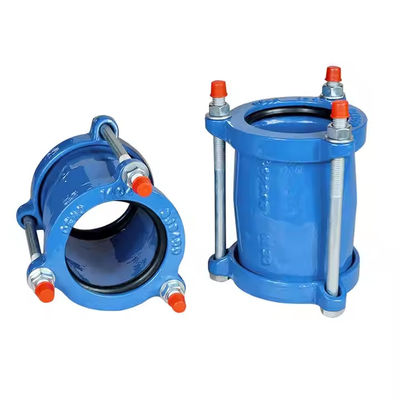

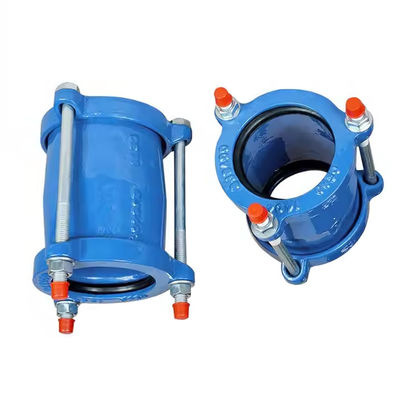

EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation

EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation
EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation

Large Image :  EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄38.2-57.8 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation

Description
Working Temperature: -10℃~70°C Body Material: Carbon Steel Galvanized
OEM: Support Color: Blue
Warranty: 1 Year Shape: Equal
Head Code: Round
Highlight:

EN124 DI Gibault Repair Coupling

,

PE PVC Steel Pipe Gibault Joint I

,

Steel Pipe Gibault Joint Installation

EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation
EN124 DI Galvanized Carbon Steel Universal Coupling PE/PVC/Steel Pipe Connector
The dresser coupling consists of a loose sleeve expansion joint and two spacing stubs. It is mainly used to absorb axial displacement and loose pipe connections under axial pressure and thrust within the allowable displacement range.
Product Features
  • Wide range of compensation
  • High transmission torque
  • High transmission accuracy
  • Simple maintenance
  • Adaptable to various applications
Product Application Field
These flexible compensation joints are widely used in automobiles, agricultural machinery, and industrial equipment. In automobiles, they transmit engine power to wheels. In agricultural machinery, they transfer motor movement to various components. In industrial settings, they connect devices while compensating for displacement to ensure proper equipment operation.
Product Parameters
Size DN50mm~DN1200mm
Material Ductile iron, carbon steel
Standard ISO2531, EN12842, ISO4422
Pressure PN10, PN16
Body material Ductile iron with FBE coating or Epoxy painting
Gasket materials NBR or EPDM
Bolts and Nuts Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316
Color Blue, black or custom
Application For air, water, sewer and gas pipelines
Package Wooden cases, protection layer or custom
Technical Specifications
DN OD Range(mm) L(mm) D (mm) Bolt Quantity
50 59-72 102 165 M12*180 2
65 72-85 102 185 M12*180 2
80 88-103 102 185 M12*180 4
100 109-128 102 218 M12*180 4
125 132-146 102 250 M12*180 4
150 159-182 102 272 M12*200 4
175 192-210 130 312 M12*200 4
200 218-235 130 335 M12*220 6
250 272-289 130 405 M12*220 6
300 315-332 130 460 M12*220 6
Note: The above data represents partial specifications. Contact us for custom sizes.
Related Products
To choose us is to choose rest assured and trust.
EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation 0
EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation 1
EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation 2
EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation 3
Installation and Maintenance Precautions
  • Pre-installation inspection: Ensure the joint is undamaged, clean, and free of foreign matter
  • Correct installation: Follow instructions to allow proper movement within specified range
  • Regular inspection: Check for wear and replace damaged components promptly
  • Maintenance: Keep surrounding area clean to prevent contamination
Packaging & Shipping
Products are wrapped in film paper and packed in labeled wooden cases. Standard shipping is via Qingdao Port sea freight, with alternative methods available upon request.
Product Packaging
EN124 DI Gibault Repair Coupling PE PVC Steel Pipe Gibault Joint Installation 4
