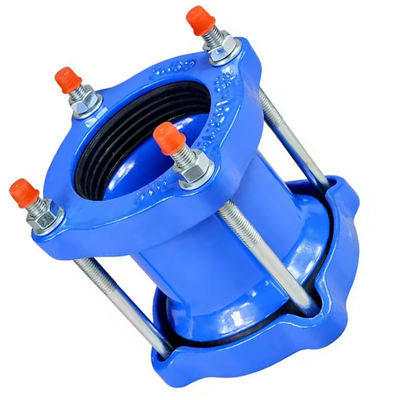

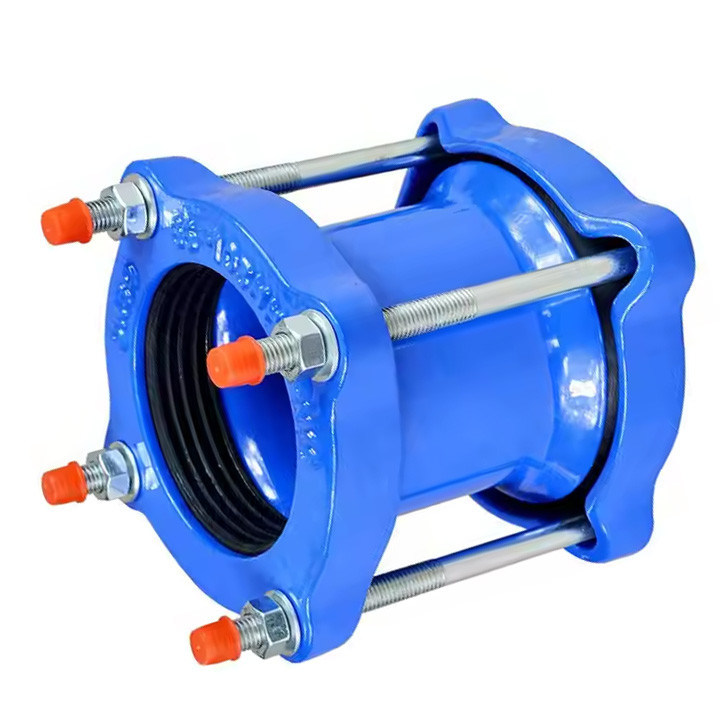

DN150 Flanged Gibault Joint Ductile Cast Iron DI Gibault Coupling
DN150 wide range flexible gibault joints ductile cast iron DI universal coupling for PVC pipes
Product Introduction
Universal couplings and flange joints, suitable for DN40-DN600 specifications, steel pipes, ductile iron pipes and plastic pipes with grades PN6, PN10 and PN16. It has the ability to connect to different kinds of pipes. It is mainly used to absorb axial displacement, withstand axial pressure and thrust within the allowable displacement range, and loosen the pipeline connection.
Features
- Earthquake-resistant, impact-resistant, noise-reducing
- Reduce the weight of the pipeline
- Save pipeline space
- Cost-effective
- Easy maintenance
Product Material
1. The pipe material is: Cast iron pipe, steel pipe, PVC/PE pipe
2. Coating: Support customization
3. Rubber ring material: EPDM, nitrile rubber, etc
4. Bolt material: 4.8 grade electro-galvanized, 8.8 grade hot-dip galvanized, SS304, SS316 etc
Product Parameters
| DN |
DW external diameter |
External dimension |
N-Th |
Length |
D |
0.25-1.6Mpa |
2.5-6.4Mpa |
L1 |
L |
| 65 |
76 |
180 |
208 |
155 |
4-M12 |
4-M12 |
|
|
|
| 80 |
89 |
165 |
|
|
|
|
|
|
|
| 100 |
108 |
195 |
|
|
|
|
|
|
|
| 100 |
114 |
195 |
|
|
|
|
|
|
|
| 125 |
133 |
225 |
|
|
|
|
|
|
|
| 125 |
140 |
225 |
4-M16 |
|
|
|
|
|
|
| 150 |
159 |
220 |
225 |
4-M16 |
6-M16 |
|
|
|
|
| 150 |
168 |
225 |
|
|
|
|
|
|
|
| 200 |
219 |
310 |
|
|
|
|
|
|
|
| 225 |
245 |
335 |
|
|
|
|
|
|
|
| 250 |
273 |
223 |
375 |
6-M20 |
8-M20 |
|
|
|
|
Tips: The above data is only part of the data, if you need a special size, please contact us.
Installation Steps and Precautions
1. Inspection and preparation: Before installation, the model, specification and pipeline configuration of the compensation joint should be checked to ensure that the design requirements are met. Remove the protective cover and rinse it with it fully open.
2. Pipeline cleaning: Clean the pipeline to ensure that the pipeline and joints are clean and free of impurities. At the same time, it is also necessary to check the model and specification of the compensation joint to ensure that it meets the requirements of the pipeline.
3. Installation position: Install the compensating joint on the pipeline in the horizontal or vertical direction, and ensure that the pipeline near the installation point should not sag or be affected by external force.
4. Connecting bolts: Use the specified torque to cross-tighten the flange connecting bolts to ensure that the compensation joint is closely connected to the pipeline.
5. Adjust the length: Adjust the connection length between the two ends of the product and the flange to ensure that the compensating joint can absorb the thermal expansion and contraction and vibration of the pipeline.
6. Whole machine test: The whole machine is tested according to the specified signal to prevent vibration caused by transportation, and can be installed only after passing the test.
7. Regular inspection and maintenance: In order to ensure that the compensation joint can work stably for a long time, regular inspection is required. Generally speaking, it is recommended to check once every six months, mainly to check whether the displacement and rebound amount of the compensation joint are normal. If any problems are found, they need to be dealt with promptly.
Inventory Display
Product Composition
