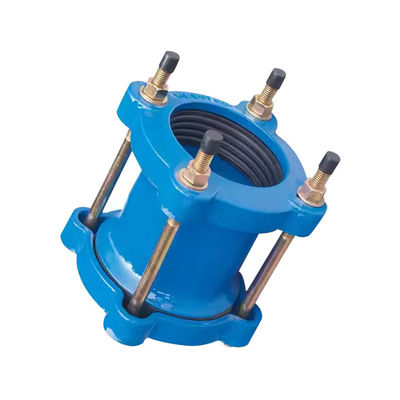

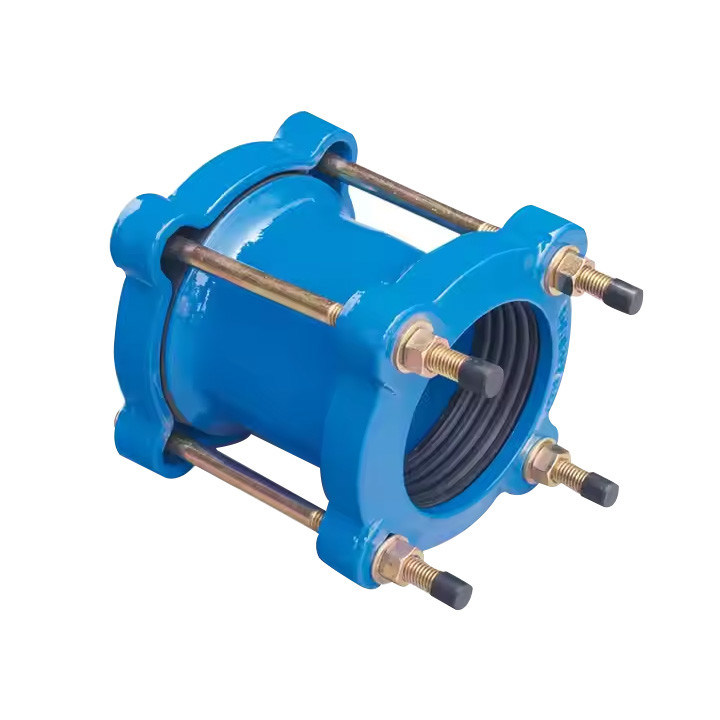

PN10/16 PVC Universal Coupling EN545 Flexible Compensation Joints

PN10/16 PVC Universal Coupling EN545 Flexible Compensation Joints
PN10/16 PVC Universal Coupling EN545 Flexible Compensation Joints PN10/16 PVC Universal Coupling EN545 Flexible Compensation Joints

Large Image :  PN10/16 PVC Universal Coupling EN545 Flexible Compensation Joints

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄11.6-36.8 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

PN10/16 PVC Universal Coupling EN545 Flexible Compensation Joints

Description
Application: Water Pipe System Applicable Media: Neutral Liquid/sewage
Material: Carbon Steel Features: Corrosion-resistant Construction
Test Standard: EN12266-1 Working Pressure: From Pn10 To Pn16
Coating: Support Customization
Highlight:

EN545 Flexible Compensation Joints

,

PN10/16 PVC Universal Coupling

,

PVC Universal Coupling EN545

PN10/16 PVC Universal Coupling EN545 Flexible Compensation Joints
EN545 Large Range Flexible Bolt Joint Carbon Steel PN10/16 PVC Pipe Universal Coupling
Material and Performance

Wide-range flexible compensation joints are manufactured from high-performance materials including stainless steel and EPDM rubber, offering excellent corrosion resistance, pressure tolerance, and flexible angle adjustment capability. These properties ensure stable performance in high-temperature or humid environments, guaranteeing long-term system reliability.

Applications
  • Petrochemical Industry: Used in transmission pipeline systems for petroleum, natural gas, and chemical processing, withstanding high pressure, temperature, and corrosive conditions.
  • Power Industry: Ensures stability and safety in power transmission pipeline systems.
  • Metallurgical Industry: Maintains smooth operation in metallurgical production pipeline systems.
  • Shipbuilding Industry: Resists seawater corrosion and hull vibration in marine piping systems.
  • Aerospace Industry: Supports reliable operation in aerospace vehicle piping systems.
Product Parameters
PN10/16 PVC Universal Coupling EN545 Flexible Compensation Joints 0
Specification Details
Size DN50mm~DN1200mm
Material Ductile iron, carbon steel
Standard ISO2531, EN12842, ISO4422
Pressure PN10, PN16
Body material Ductile iron with FBE coating or Epoxy painting
Gasket materials NBR or EPDM
Bolts and Nuts Carbon steel with galvanized zinc plated G4.8/G8.8 or SS304/SS316
Color Blue, black or custom
Application Air, water, sewer and gas pipelines
Package Wooden cases, protection layer or custom
Technical Specifications
DN OD Range(mm) L(mm) D (mm) Bolt Quantity
50 59-72 102 165 M12*180 2
65 72-85 102 185 M12*180 2
80 88-103 102 185 M12*180 4
100 109-128 102 218 M12*180 4
125 132-146 102 250 M12*180 4
150 159-182 102 272 M12*200 4
175 192-210 130 312 M12*200 4
200 218-235 130 335 M12*220 6
250 272-289 130 405 M12*220 6
300 315-332 130 460 M12*220 6
300 322-339 130 435 M12*220 6
350 340-360 150 455 M12*250 6
350 351-368 150 518 M16*250 8
350 374-391 150 568 M16*250 8
400 400-429 150 580 M16*250 8
400 418-435 150 580 M16*250 8
400 425-442 150 625 M16*260 8
450 455-472 150 665 M16*260 10
500 500-532 150 690 M16*260 10
500 527-544 150 715 M16*260 10
500 555-572 150 715 M16*260 10
600 600-630 150 790 M16*260 10

Note: The above data represents standard sizes. Contact us for custom specifications.

Installation Preparation
  1. Inspect pipes and equipment
  2. Prepare installation tools and materials
  3. Check the flexible joints
  4. Prepare the installation environment
  5. Implement safety protection measures
Installation Guidelines
  1. Verify specifications and models
  2. Clean the piping system thoroughly
  3. Select appropriate fixing method
  4. Ensure secure installation
  5. Check system tightness
  6. Perform regular inspection and maintenance
