Customized SS304 PN16 Pipe Compensator Flexible Ball Expansion Joint E Type

Customized SS304 PN16 Pipe Compensator Flexible Ball Expansion Joint E Type
Customized SS304 PN16 Pipe Compensator Flexible Ball Expansion Joint E Type Customized SS304 PN16 Pipe Compensator Flexible Ball Expansion Joint E Type

Large Image :  Customized SS304 PN16 Pipe Compensator Flexible Ball Expansion Joint E Type

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: QB
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $19.5-$199.9
Packaging Details: Inside: Plastic Film ，Outside: Wooden Case
Delivery Time: 5-15work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 2500 per month
Contact Now Chat Now

Customized SS304 PN16 Pipe Compensator Flexible Ball Expansion Joint E Type

Description
Product Name: SS304 PN16 E Type Compensator Key Word: Spherical Compensator
Specification: DN100-DN2400 Material: Carbon Steel,SS304,SS316
Pressure: 0.6Mpa,1.0Mpa,1.6Mpa,2.5Mpa Application: Pipe Lines Connect
Standard: ANSI ,JIS, DIN
Highlight:

Customized SS304 PN16 Pipe Compensator

,

PN16 Pipe Compensator Flexible

,

SS304 PN16 Ball Expansion Joint

Customized SS304 PN16 Pipe Compensator Flexible Ball Expansion Joint E Type
Support Customized Ball Joint SS304 PN16 E Type Compensator
Definition of Spherical Compensator

Spherical compensator is a flexible pipe connection device that achieves multi-directional displacement compensation through a spherical structure, used to relieve stress caused by thermal expansion and contraction, vibration, or installation errors.

Core Function

Absorbs axial, lateral, and angular displacement to ensure safe operation of the pipeline system.

Ball Compensator Main Components
  • Ball: Core moving part, typically forged stainless steel with polished surface to reduce friction
  • Seal assembly: Multi-layer graphite ring or PTFE material to ensure sealing under high pressure
  • Housing/flange: Carbon steel or stainless steel, providing structural support and connection interface
  • Limiting rod (optional): Prevents excessive rotation or displacement beyond design range

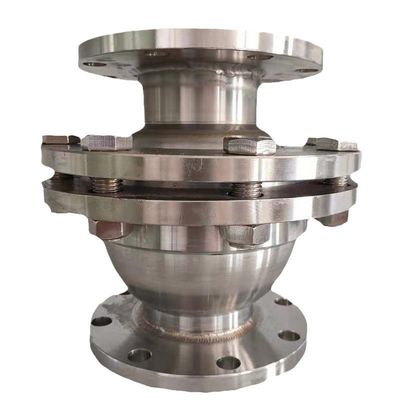

Customized SS304 PN16 Pipe Compensator Flexible Ball Expansion Joint E Type 0
Spherical Compensation Joint Connection Data
DN Do L θ Flange Connection Size (0.6Mpa) Flange Connection Size (1.0Mpa) Flange Connection Size (1.6Mpa)
D K N-do D K N-do D K N-do
100282290152101704-182201808-182201808-19
1503463202652258-182852408-222852408-23
2004103823202808-183402958-2234029512-23
25046441037533512-1839535012-2240535512-27
30052543044039512-2244540012-2246041012-27
35060747049044512-2250546016-2252047016-27
40066855054049516-2256551516-2658052516-30
45072860059555016-2261556520-2664058520-30
50079868964560020-2267062020-2671565020-34
60091872575570520-2678072520-3084077020-37
700105680086081024-2689584024-3091084024-37
800116089397592024-30101595024-33102595024-40
90013109201075102024-301115105028-331125105028-40
100014439751175112028-301230116028-361255117028-43
1200169311251405134032-331455138032-391485139032-48
1400194212901630156036-361675159036-42///
160021641385131830176040-361915182040-48///
1800240015802045197044-392115202044-48///
2000273018702265218048-422325223048-48///
Application Areas
  • Thermal pipe network: Requires installation every 100 meters in steam pipes, with compensation capacity up to 200mm
  • Petrochemical industry: Used for reactor inlet/outlet, resistant to corrosive media like H₂S
  • Metallurgical industry: Blast furnace cooling systems, withstands radiant heat above 1000℃
  • Ship engineering: Engine pipeline vibration reduction, adapts to hull deformation

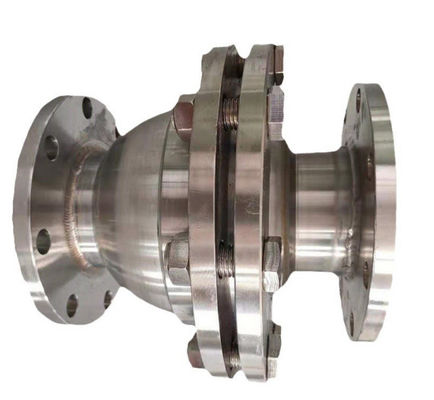

Customized SS304 PN16 Pipe Compensator Flexible Ball Expansion Joint E Type 1
