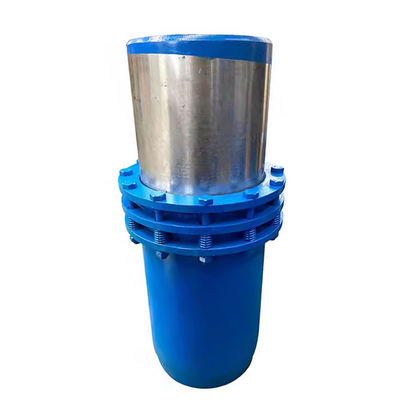

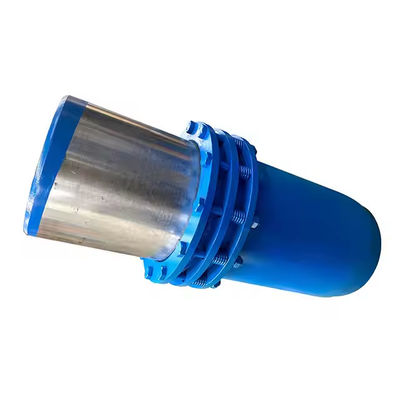

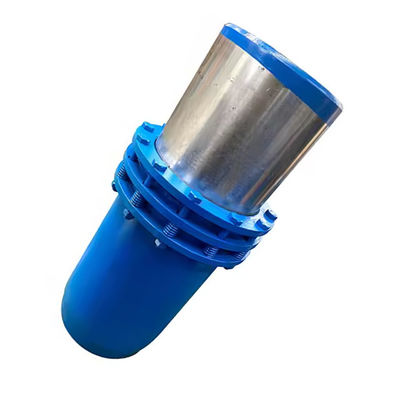

Special Welding DN150 PN25 Sleeve Compensator For Thermal Pipeline

The sleeve compensator, also known as the tubular expansion joint, is a compensation device for hot fluid pipelines, primarily used to absorb axial thermal expansion displacement caused by temperature changes. It is widely implemented in transmission pipelines across various industries including urban heating, metallurgy, mining, power generation, petrochemical, and construction.

The sleeve compensator consists of three main components:

• Sleeve (Core Tube): Connected to the pipeline, utilizing high-performance self-pressure dynamic sealing
• Shell: Allows free sliding movement of the inner sleeve during pipeline expansion/contraction
• Sealing Material: Advanced synthetic material resistant to high temperatures (-40°C to 150°C, extendable to 350°C), corrosion, and aging

The compensator operates through sliding motion between sleeve and outer sleeve, accommodating:

• Axial pipeline expansion/contraction
• Axial rotation at any angle
• Ideal for hot water, steam, and grease media
• Compact design with significant compensation capacity

Welded sleeve compensator

Flanged sleeve compensator

E-type ball compensator

D-type large deflection loose sleeve compensation joint

• Thermal Power Plants: Steam/hot water pipelines in boiler rooms, steam engine rooms, and heat exchange stations
• Petrochemical Industry: High temperature/pressure pipeline systems
• Steel Metallurgy: Steam pipelines for blast furnaces and converters
• Urban Heating Systems: Ensuring heating system stability and safety
• Long-Distance Transport: Crude oil and natural gas pipeline systems
• Nuclear Power Plants: Withstanding extreme temperature/pressure variations
• Other Industries: Paper, pharmaceutical, and textile industrial steam systems

• Competitive pricing with quality assurance and bulk inventory availability
• Custom non-standard specifications with short production lead times
• Comprehensive 1-year warranty with technical support and engineering guidance
• Flexible invoicing options (regular and VAT invoices)
• Export-grade packaging (wooden crates, cartons, bubble wrap pallets)
• Multiple delivery methods including dedicated transport and logistics partners
