End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors

End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors
End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors

Large Image :  End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO9001
Model Number: KDTF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $25-$169
Packaging Details: Export wooden boxes
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,D/A,Western Union,MoneyGram,L/C
Supply Ability: 2500 sets per month
Contact Now Chat Now

End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors

Description
Flange Material Options: Q235, SS304, SS316, SS316L Rubber Material: EPDM,NBR,FKM
Connection: Flange,flange Of Epdm Rubber Expansion Joint,Male/Female,Female Technics: Forged,Casting,Vulcanized,Other
Type: Flange,Coupling,joint,rubber Expansion Joints,Dual-ball Temperature: -20℃~150℃
Purchase Option: Can Buy Ball Without The Flange Explosion Pressure: 2 Times Of Working Pressure
Oem: Support, 20Years' Experience
Highlight:

End Face Pipe Rubber Joint PN16

,

Pipe Rubber Joint PN16 DN50

,

DN1200 Rubber Pipe Connectors

End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors
Product Overview

End Face Fully Sealed Rubber Expansion Joint is a flexible pipe connector designed with a full face sealing structure, ensuring reliable sealing performance under high pressure conditions. It compensates for axial displacement, lateral deflection, and vibration reduction in piping systems.

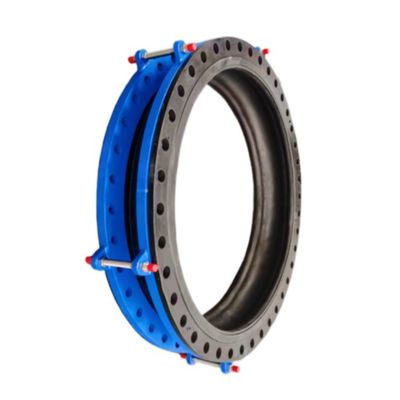

End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors 0
Key Features
  • Full Face Seal - prevents leakage and provides maximum sealing performance
  • High Flexibility - absorbs axial, transverse, and angular movements
  • Wide Material Options - EPDM, NBR, Neoprene for different media resistance
  • Corrosion Resistant Flanges - available in carbon steel, galvanized steel, and stainless steel
  • Long Service Life - designed for durability under harsh working conditions
Technical Parameters
Attribute Details
Product Name End Face Fully Sealed Rubber Expansion Joint
Size Range DN32-DN3200
Pressure Rating PN6/PN10/PN16/PN25
Material (Rubber) EPDM, NBR, Neoprene, Natural Rubber
Flange Standard DIN, ANSI, JIS, BS, EN
Flange Material Carbon Steel, Galvanized Steel, Stainless Steel (304/316)
Temperature Range -20℃ ~ +120℃ (depending on material)
Medium Water, Sea Water, Oil, Acid, Alkali, Air, Gas
Connection Type Flange Connection
Seal Type Full Face Seal (End Face Fully Sealed)
Applications
  • Municipal water supply and drainage
  • HVAC systems
  • Firefighting pipelines
  • Industrial and chemical pipelines
  • Marine and shipbuilding industries
  • Oil & gas transportation

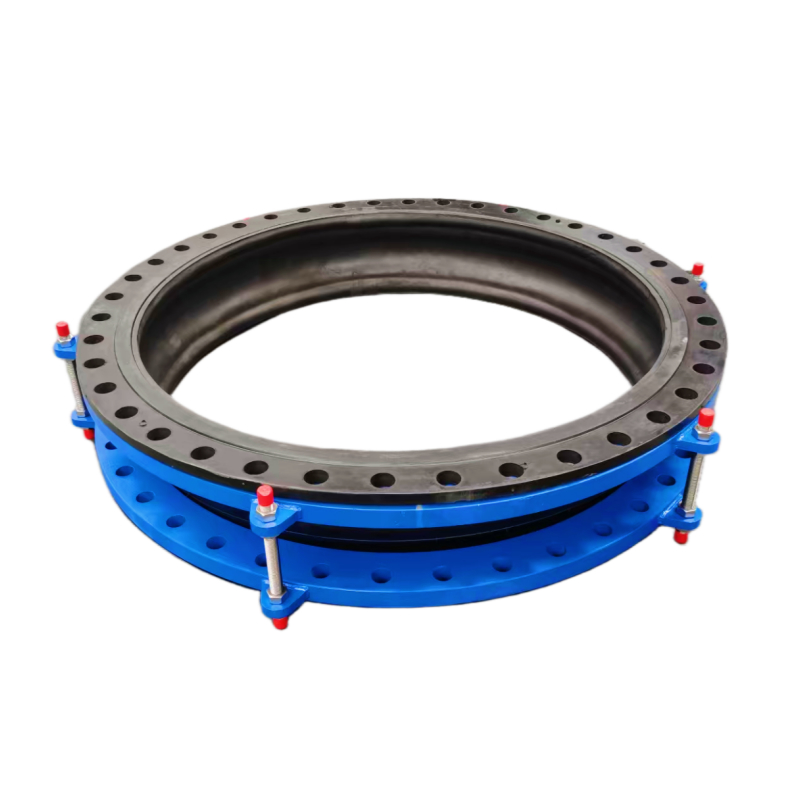

End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors 1
Product Advantages
  1. Zero Leakage Design - full-face sealing structure ensures safety and reliability
  2. Customizable - size, pressure, flange standards, and rubber material can be tailored
  3. Strong Pressure Resistance - suitable for PN6-PN25 working conditions
  4. Quick Installation - simple flange connection reduces installation time
  5. Cost-Effective - long service life lowers maintenance costs
Flange Type Expansion Joint Product Display
End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors 2
Factory Packaging and Delivery
End Face Pipe Rubber Joint PN16 DN50-DN1200 Rubber Pipe Connectors 3
Frequently Asked Questions
Q1: What is the difference between fully sealed and ordinary rubber expansion joints?

A1: Fully sealed expansion joints have a complete end-face sealing design, providing better leak-proof performance compared to standard types.

Q2: What medium can this joint be used for?

A2: Depending on the rubber material, it can be used for water, seawater, oil, weak acid/alkali, compressed air, and other fluids.

Q3: Can I customize the flange standard?

A3: Yes, flanges are available in DIN, ANSI, JIS, BS, and EN standards.

Q4: What is the maximum size available?

A4: We can supply from DN50 up to DN3200, and even larger sizes upon request.

Q5: What is the delivery time?

A5: Usually 7-15 days depending on order quantity and customization requirements.

Tag:

EPDM Rubber Expansion Joint,

flexible joint coupling,

Flange Compensator
