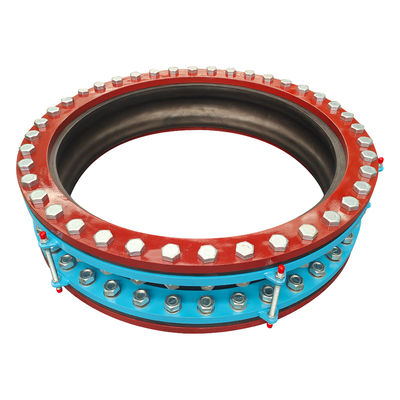

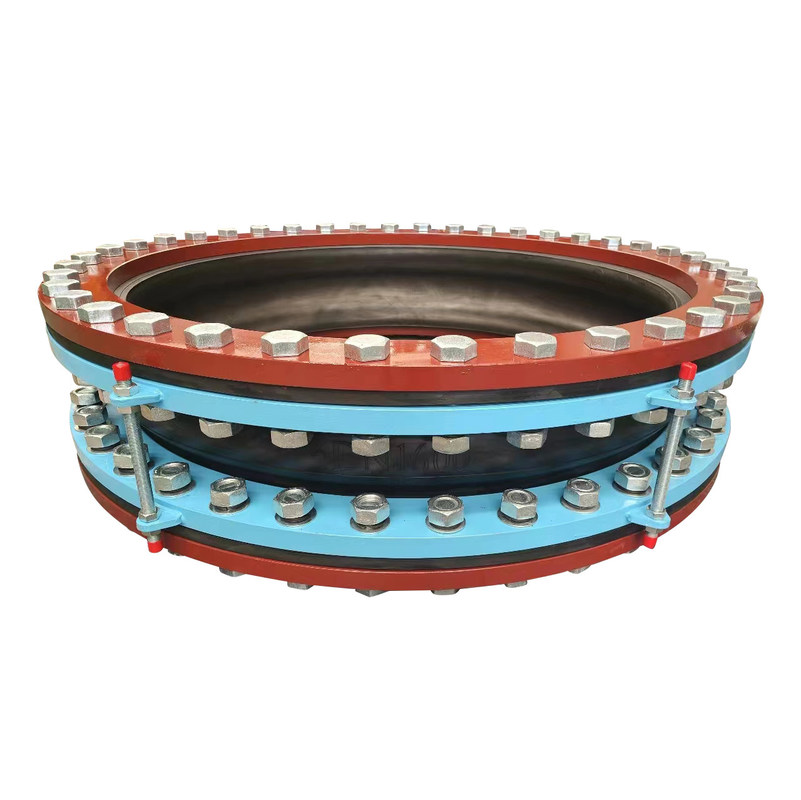

DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting

DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting
DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting

Large Image :  DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO9001
Model Number: KDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $288-498 per set
Packaging Details: Inside: Plastic Film ，Outside: Wooden Case
Delivery Time: 7-15 work days
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram,L/C
Supply Ability: 2500 sets per month
Contact Now Chat Now

DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting

Description

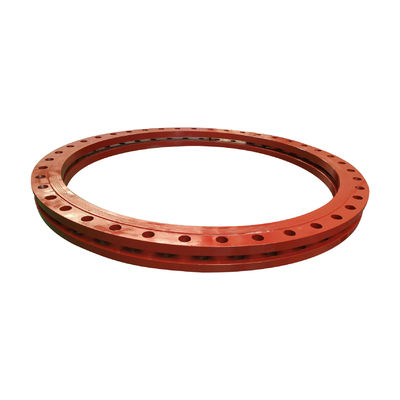

Product Name: DN1600 Pn10 Flanged Fully Sealed Rubber Joint Flange Material: Q235B
Flange Color: Customizable Rubber Material: Natural Rubber
Working Pressure: PN10 Working Temperature: 0-80℃
Standard Of Flange: ANSI,JIS,DIN,ASME,Etc
Highlight:

PN10 Pipe Rubber Expansion Joint

,

DN1600 Pipe Rubber Expansion Joint

,

Q235B Flanged Expansion Joint Pipe Fitting

DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting
PN10 DN1600 Rubber Expansion Joint - Flanged, Fully Sealed, with Counter Flange Support

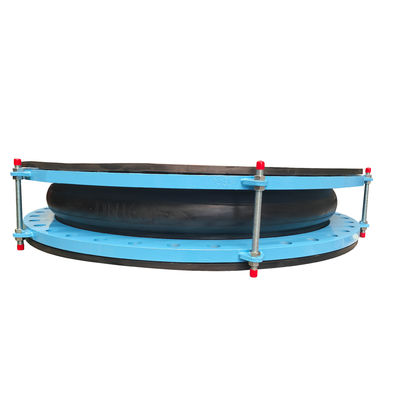

Rubber expansion joints consist of inner and outer rubber, nylon cord fabric which are vulcanized and then combined with metal flanges or loose sleeves of parallel joints. This product can reduce vibration and noise, and compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.

DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting 0
End Face Fully sealed Rubber Joint Features
  • Compact to simplify installation
  • Eliminates electrolysis between dissimilar metals
  • Absorbs movement in all directions
  • Doesn't require gaskets
  • Compensates for misalignment
  • Relieves strain in the piping system
  • Reduces mechanical noises
Quotation Requirements

To receive a quotation quickly, please provide the following parameters:

  1. Size
  2. Working pressure
  3. Flange standard
  4. Use medium (for appropriate rubber material recommendation)
  5. Flange material
Main Connection Dimensions
Nominal diameter Length (mm) Axial displacement Horizontal movement Deflection angle
32 mm (1 1/4") 95 6 9 15°
40 mm (1 1/2") 95 6 10 15°
50 mm (2") 105 7 10 15°
65 mm (2 1/2") 115 7 13 15°
80 mm (3") 135 8 15 15°
100 mm (4") 150 10 19 15°
125 mm (5") 165 12 19 15°
150 mm (6") 180 12 20 15°
200 mm (8") 210 16 25 15°
250 mm (10") 230 16 25 15°
300 mm (12") 245 16 25 15°
350 mm (14") 255 16 25 15°
400 mm (16") 255 16 25 15°
450 mm (18") 255 16 25 15°
500 mm (20") 255 16 25 15°
600 mm (24") 260 16 25 15°
700 mm (28") 260 16 25 15°
800 mm (32") 260 16 25 15°
DN1600 Flanged Rubber Joint Production Process
DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting 1
Packing and Delivery
DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting 2 DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting 3
Application Cases
DN1600 PN10 Pipe Rubber Expansion Joint Q235B Flanged Expansion Joint Pipe Fitting 4
About Our Factory

We are a rubber expansion joint factory with the following quality assurances:

  • Raw materials come with material certificates and guaranteed quality
  • Rubber is produced strictly according to customer requirements without material changes
  • Vulcanized product forms a solid unit with polyester cord middle layer for strong pressure bearing capacity
  • Professional inspection process to remove burrs and eliminate defective products
  • Customization options available including vulcanization labels and special lengths
Frequently Asked Questions
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.
Q: What's the working temperature?
A: The working temperature is -20℃~120℃.
Q: What's the material of flange?
A: The material of flange can be carbon steel, stainless steel and ductile iron.
Q: Can you provide only rubber?
A: Yes, we can provide only rubber.
