200mm 8 Inch Expansion Joint Flanged Rubber Flex Connectors End Face Fully Sealed
Product Description

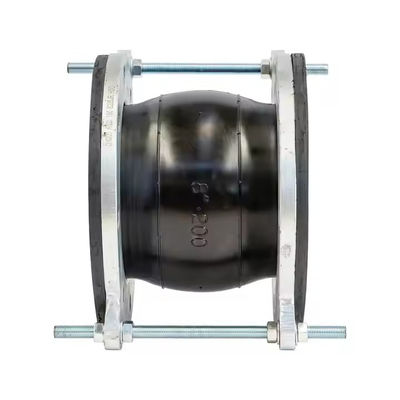

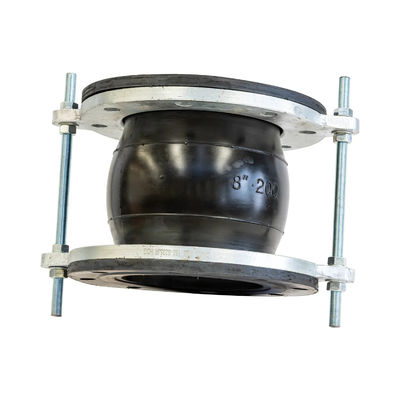

8inch 200mm end face fully sealed carbon steel flange single ball rubber coupling joint flexible rubber joint
Introduction of End Face Fully Sealed Rubber Joints
The KDF type large end face fully sealed rubber joint is a high-performance, multi-functional pipe connector with wide application prospects. Combining rubber elasticity with metal flange strength, it offers excellent characteristics for demanding pipeline systems.
Key Features
- High elasticity and air tightness: Effectively absorbs pipeline vibration and displacement while reducing noise transmission.
- Pressure and media resistance: High internal density withstands substantial pressure and various media including acids, alkalis, oils, hot/cold water, and compressed gases.
- Durability: Made from environmentally friendly synthetic rubber with excellent weather and radiation resistance, free from lead and toxic substances.
- Material adaptability: Available in acid-resistant, alkali-resistant, corrosion-resistant, oil-resistant, and heat-resistant variants to suit different environments.
- Easy installation: Simple to install and maintain, though care should be taken to avoid contact with sharp metal instruments.
Product Specifications
| No |
Name |
Material |
| 1 |
Inner and outer rubber layers |
NR/NBR/EPDM |
| 2 |
Frame |
Nylon cord fabric |
| 3 |
Pressurized ring |
Steel wire strand |
| 4 |
Flange |
Q235, ductile iron |
| Nominal diameter |
Length (mm) |
Axial displacement (mm) |
Lateral displacement (mm) |
Deflection angle |
| 32mm (1 1/4") |
95 |
6 |
9 |
15° |
| 40mm (1 1/2") |
95 |
6 |
10 |
15° |
| 50mm (2") |
105 |
7 |
10 |
15° |
| 65mm (2 1/2") |
115 |
7 |
13 |
15° |
| 80mm (3") |
135 |
8 |
15 |
15° |
| 100mm (4") |
150 |
10 |
19 |
15° |
| 125mm (5") |
165 |
12 |
19 |
15° |
| 150mm (6") |
180 |
12 |
20 |
15° |
| 200mm (8") |
210 |
16 |
25 |
15° |
| 250mm (10") |
230 |
16 |
25 |
15° |
| 300mm (12") |
245 |
16 |
25 |
15° |
| 350mm (14") |
255 |
16 |
25 |
15° |
| 400mm (16") |
255 |
16 |
25 |
15° |
| 450mm (18") |
255 |
16 |
25 |
15° |
| 500mm (20") |
255 |
16 |
25 |
15° |
| 600mm (24") |
260 |
16 |
25 |
15° |
| 700mm (28") |
260 |
16 |
25 |
15° |
| 800mm (32") |
260 |
16 |
25 |
15° |
| 900mm (36") |
260 |
16 |
25 |
15° |
| 1000mm (40") |
260 |
18 |
26 |
15° |
| 1200mm (48") |
260 |
18 |
26 |
15° |
Note: The above data represents standard specifications. Contact us for custom sizes.
Applications
KDF large flanged rubber joints are widely used in:
- Water supply, drainage, and circulating water systems
- HVAC, fire protection, and plumbing installations
- Paper, pharmaceutical, and petrochemical industries
- Shipbuilding, pumps, compressors, and fan systems
- Chemical processing, construction, and power generation
Superior Corrosion Resistance
The rubber and polymer construction provides excellent chemical stability, making these joints ideal for corrosive environments in chemical processing and industrial applications.
Frequently Asked Questions
Q: What are the parts of your rubber joints?
A: Each joint consists of two flanges and a rubber sphere, which contains nylon cord fabric, multi-stranded steel wire rope, and compound rubber.
Q: What rubber materials do you use?
A: We offer natural rubber, nitrile rubber, EPDM, neoprene, fluorine rubber, and food-grade rubber options.
Q: What are the advantages of end face fully sealed rubber joints?
A: Key benefits include compact size, lightweight construction, excellent elasticity, and easy installation/maintenance.
Q: What are the characteristics of flanged rubber joints?
A: These joints feature high temperature resistance, acid/alkali resistance, and oil resistance for demanding applications.
Q: Can I visit your factory before ordering?
A: Yes, we welcome factory visits to inspect our production quality and processes.
Q: Can you produce according to customer requirements?
A: Absolutely. While we offer standard specifications, we can design and manufacture custom solutions to meet specific requirements.
