Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant

Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant
Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant

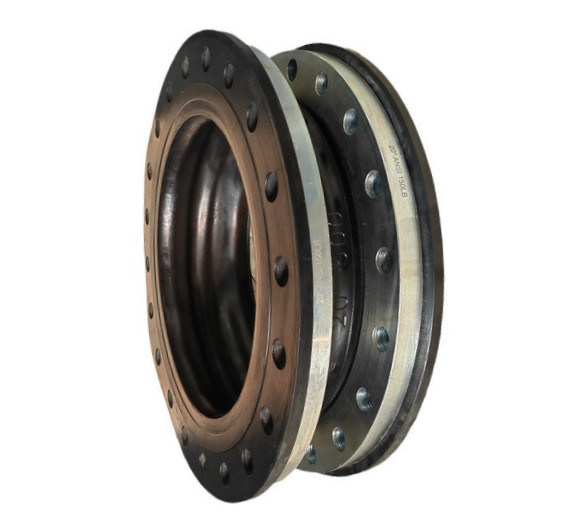

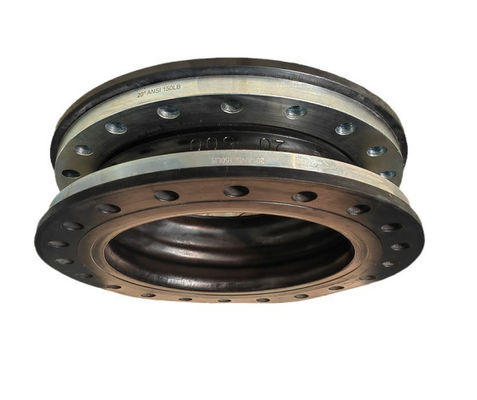

Large Image :  Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄37.5-64.5 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7 day
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram,L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant

Description
Product Category: Fully Sealed Rubber Expansion Joint Main Features: Good Sealing, Shock Absorption And Noise Reduction, Compensation Displacement, Pressure And Temperature Resistance
Common Types: Single Ball Flanged Rubber Joint, Double Ball Flanged Rubber Joint, Reducing Diameter Flanged Rubber Joint, High Temperature Resistant Type Overall Length: Support Customization
Pipe Features: Flexible, Corrosion Resistant, Chemical Resistant Pressure: PN6 - PN40
Highlight:

Customizable EPDM Expansion Joint PN6

,

EPDM Expansion Joint PN40

,

Chemical Resistant rubber joint pipe

Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant
Product Description
PN6 PN40 Pressure Fully Sealed Rubber Expansion Joint Chemical Resistant Pipe Features Support Customization
What is a Flanged Rubber Joint?
A flanged rubber joint is a flexible connector used in piping systems to accommodate various movements, reduce vibration, and compensate for misalignment. It consists of a flexible rubber body with integral rubber flanges at each end. These flanges are designed to mate with corresponding pipe flanges, creating a tight seal without the need for additional gaskets.
Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant 0
Flanged rubber joints offer several advantages:
  • Movement Absorption: They can absorb axial (compression/elongation), lateral (side-to-side), and angular (bending) movements in piping systems.
  • Vibration and Noise Reduction: The rubber material effectively isolates and dampens vibrations and noise transmitted through the pipeline.
  • Misalignment Compensation: They can compensate for minor misalignments in piping runs, simplifying installation.
  • Corrosion and Abrasion Resistance: Depending on the elastomer used, these joints offer excellent resistance to various chemicals, abrasion, and erosion.
  • Easy Installation: Many feature "floating flanges" for easy rotation and alignment during installation.
  • No Gaskets Required: The integral rubber flanges eliminate the need for separate gaskets.
Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant 1
Product Features
  • Product Name: Fully Sealed Rubber Expansion Joint
  • Overall Length: Support Customization
  • Main Features:
    • Good sealing
    • Shock absorption and noise reduction
    • Compensation displacement
    • Pressure and temperature resistance
  • Flange Material: SS, CS, CS Galvanized, ductile Iron, PPH (PN10, PN16)
  • Difference from Ordinary Rubber Joints:
    • Higher pressure bearing capacity
    • Installation method using flange bolts
Technical Parameters
Technical Parameter Value
Pressure PN6 - PN40
Selection Points Medium, Pressure level, Displacement requirements, Flange standard
Pipe Features Flexible, Corrosion Resistant, Chemical Resistant
Common Types Single ball flanged rubber joint, Double ball flanged rubber joint, Reducing diameter flanged rubber joint, Acid and alkali resistant/high temperature resistant type
Nominal Diameters DN15-DN4000
Main Features Good sealing, Shock absorption and noise reduction, Compensation displacement, Pressure and temperature resistance
Product Category Fully Sealed Rubber Expansion Joint
Flange Standard DIN PN10,PN16,PN25/ANSI 150LB,300LB/JIS 10K,etc.
Product Applications
  • Industrial Piping Systems: Perfect for absorbing vibrations, reducing noise, and compensating for thermal expansion and contraction.
  • HVAC Systems: Provides flexibility and movement in ductwork, ensuring smooth operation.
  • Water Treatment Plants: Absorbs movement and vibrations in pipelines, preventing damage.
  • Petrochemical Industry: Offers resistance to various chemicals in demanding environments.
  • Power Plants: Maintains pipeline integrity and absorbs shocks for smooth operation.
Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant 2
Support and Services
Our Product Technical Support and Services for the Fully Sealed Rubber Expansion Joint include:
  • Installation guidance and support
  • Product compatibility information
  • Maintenance recommendations
  • Troubleshooting assistance
  • Warranty coverage details
Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant 3
Our Rubber Sphere Stock
Customizable EPDM Expansion Joint PN6 To PN40 Pressure Chemical Resistant 4
