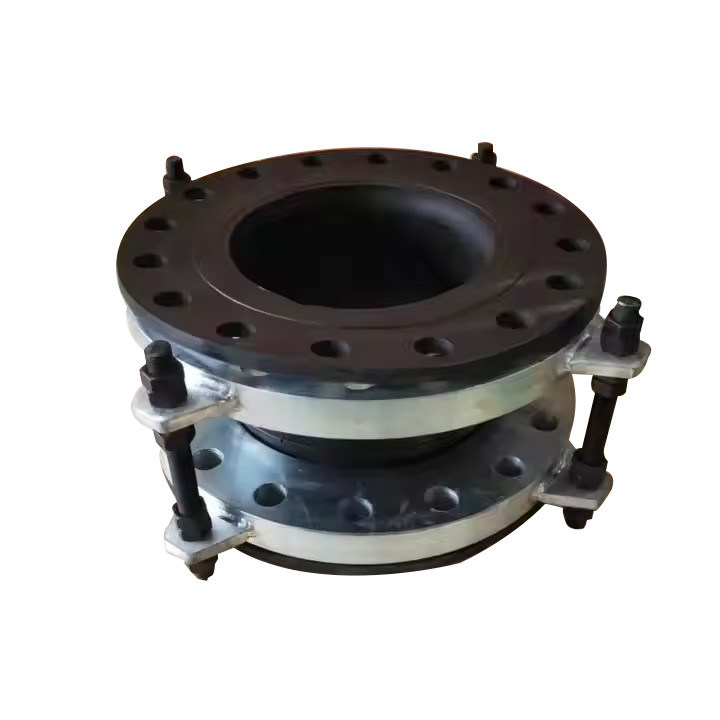

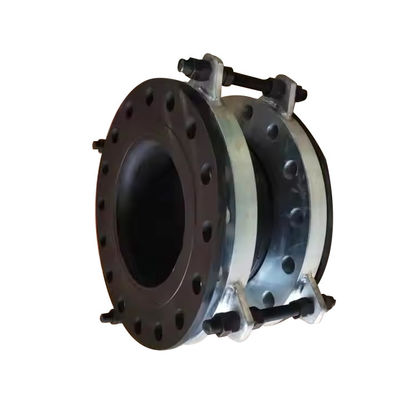

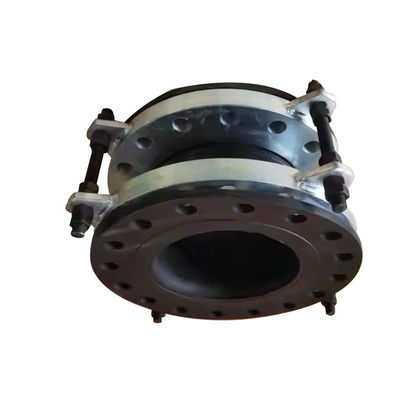

JIS 200mm Rubber Joint Pipe Galvanized Rubber Duct Expansion Joints

JIS 200mm Rubber Joint Pipe Galvanized Rubber Duct Expansion Joints
JIS 200mm Rubber Joint Pipe Galvanized Rubber Duct Expansion Joints JIS 200mm Rubber Joint Pipe Galvanized Rubber Duct Expansion Joints JIS 200mm Rubber Joint Pipe Galvanized Rubber Duct Expansion Joints

Large Image :  JIS 200mm Rubber Joint Pipe Galvanized Rubber Duct Expansion Joints

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄15.6-33.4 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 piece per month
Contact Now Chat Now

JIS 200mm Rubber Joint Pipe Galvanized Rubber Duct Expansion Joints

Description
Technics: Forged Shape: Equal
Warranty: 12 Months Rubber Material: EPDM/NBR/CR
Medium: Seawater/oil/natural Gas/acid/alkali Rubber Joint Model: DN32-DN3000
Feature: Elongation/compression/reduction Vibration Customized Support: OEM, ODM
Flange Standard: ANSI, DIN, JIS, Etc
Highlight:

JIS 200mm Rubber Joint Pipe

,

Galvanized Rubber Duct Expansion Joints

,

200mm Rubber Duct Expansion Joints

JIS 200mm Rubber Joint Pipe Galvanized Rubber Duct Expansion Joints
Product Introduction

End face fully sealed rubber connection is an improved product based on the KXT soft single-ball rubber joint. It combines high pressure resistance, excellent elasticity, large displacement capacity, anti-aging properties, vibration damping, and noise reduction. The improved design with limiting screws allows movement within a specified range while maintaining a sealing surface diameter matching standard flat welding flanges.

Key Benefits
  • Compact size and lightweight design for easy equipment maintenance
  • Accommodates lateral, axial, and angular displacements without requiring perfectly parallel pipes or flanges
  • Effectively reduces structure-borne noise transmission with superior vibration absorption
  • Seamless high-pressure construction with materials resistant to temperature extremes, acids, alkalis, and oils
  • Wide application across chemical, construction, water supply, petroleum, heavy industry, and power sectors
Technical Specifications
Item KDF-10 KDF-16 KDF-25
Working pressure 1.0Mpa 1.6Mpa 2.5Mpa
Burst pressure 2.0Mpa 3.0Mpa 4.5Mpa
Vacuum 53.3Kpa (400) 86.7Kpa (650) 100Kpa (750)
Nominal diameter Length (mm) Axial displacement (mm) Lateral displacement (mm) Deflection angle
32mm (1 1/4") 95 6 (elongation)
9 (compression)		 9 15°
40mm (1 1/2") 95 6 (elongation)
10 (compression)		 9 15°
50mm (2") 105 7 (elongation)
10 (compression)		 10 15°
65mm (2 1/2") 115 7 (elongation)
13 (compression)		 11 15°
80mm (3") 135 8 (elongation)
15 (compression)		 12 15°
100mm (4") 150 10 (elongation)
19 (compression)		 13 15°
125mm (5") 165 12 (elongation)
19 (compression)		 13 15°
150mm (6") 180 12 (elongation)
20 (compression)		 14 15°
200mm (8") 210 16 (elongation)
25 (compression)		 22 15°
Material Options
  • Natural rubber (NR): Excellent elasticity for water and domestic sewage applications
  • EPDM: Superior acid and alkali resistance for industrial wastewater
  • NBR: Oil-resistant and aging-resistant for petroleum applications
  • Chloroprene rubber (CR): High wear resistance for lime mortar environments
Industry Applications
  • Construction: Water supply, drainage, and HVAC systems with corrosion and temperature resistance
  • Chemical: Acid, alkali, and chemical transport pipelines with chemical resistance
  • Petroleum: Oil extraction, transport, and storage systems with oil and wear resistance
JIS 200mm Rubber Joint Pipe Galvanized Rubber Duct Expansion Joints 0 JIS 200mm Rubber Joint Pipe Galvanized Rubber Duct Expansion Joints 1
Frequently Asked Questions
Can you provide proof of material for flanged rubber joints?

Yes, we can provide material certification upon request.

What is the flange anti-rust technology of flexible rubber joints?

We offer multiple anti-corrosion treatments including galvanizing, painting, plastic powder coating, and epoxy resin spraying.

What are the materials of rubber balls?

Available in NR (natural rubber), NBR (nitrile), EPDM, and other specialty compounds.

What are the standards for flanges?

Compliant with ANSI, DIN, BS, JIS, and other international standards.

Can the logo on the rubber ball be customized?

Yes, we provide OEM/ODM services including custom branding.
