DN1200mm Pipe Rubber Expansion Joint Stainless Steel Neoprene Expansion Joint

DN1200mm Pipe Rubber Expansion Joint Stainless Steel Neoprene Expansion Joint

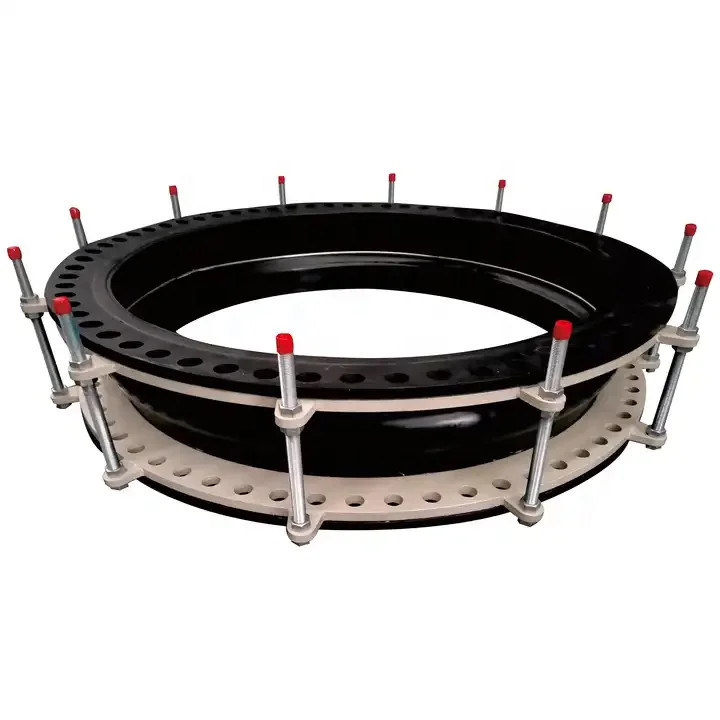

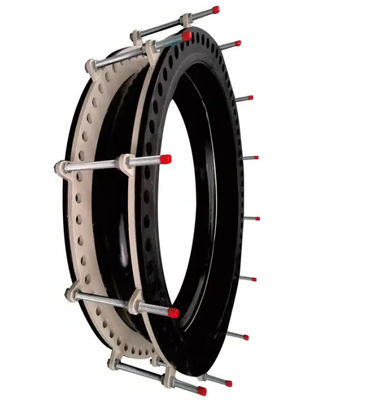

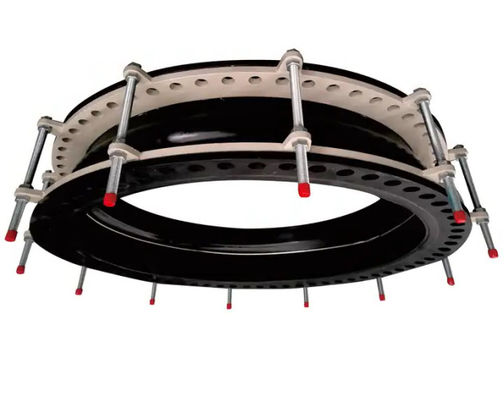

DN1200mm Pipe Rubber Expansion Joint Stainless Steel Neoprene Expansion Joint DN1200mm Pipe Rubber Expansion Joint Stainless Steel Neoprene Expansion Joint DN1200mm Pipe Rubber Expansion Joint Stainless Steel Neoprene Expansion Joint

Large Image :  DN1200mm Pipe Rubber Expansion Joint Stainless Steel Neoprene Expansion Joint

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001
Model Number: KDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $68.8-$186.6 per set
Packaging Details: Export fumigation-free wooden case(1.1*1.1*1.1m)
Delivery Time: 7-15 work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 5000 set per month
Contact Now Chat Now

DN1200mm Pipe Rubber Expansion Joint Stainless Steel Neoprene Expansion Joint

Description
Size Range: DN32-DN3000 Sealing Material: EPDM, NBR, Neoprene, Etc.
Installation Method: Bolted Reinforcement Material: Nylon Cord, Steel Wire
End Connection: Carbon Steel Or Stainless Steel Operating Conditions: Indoor Or Outdoor
Installation Type: Horizontal Or Vertical
Highlight:

DN1200mm Pipe Rubber Expansion Joint

,

Pipe Rubber Expansion Joint Stainless Steel

,

DN1200mm Neoprene Expansion Joint

DN1200mm Pipe Rubber Expansion Joint Stainless Steel Neoprene Expansion Joint
Full face rubber expansion joint, also known as large flanged flexible rubber joint, features a fully sealed end surface design. This product ensures complete contact between the flange and sphere surface, significantly enhancing pressure resistance while preventing pull-off incidents.
Product Structure of End-Face Fully Sealed Rubber Joint
Unlike standard rubber joints that use slotted flanges, our full face rubber expansion joints incorporate flat welding flanges. The design features edges that align perfectly with the flange's outer edge, with bolt installation positioned inside the sphere edge. This construction delivers exceptional pressure resistance up to 2.5Mpa or 4.0Mpa, making it ideal for pipeline connections requiring displacement accommodation.
Key Product Characteristics
  • Custom-made expansion joints available with split or fixed steel backing flanges
  • Full face flanges integrated with joint body, pre-drilled to match pipeline companion flanges
  • Rubber bellows: Reinforced EPDM, Nitrile, Viton options
  • Flange options: Painted carbon steel (standard), hot dip galvanized carbon steel, stainless steel
  • Compatible with EN, ANSI, AWWA, JIS standards or custom dimensions
  • Internal vacuum ring included for vacuum applications
Technical Specifications
Nominal Diameter Length (mm) Axial Displacement Horizontal Movement Deflection Angle
32mm (1 1/4") 95 6mm extension
9mm compression		 9mm 15°
40mm (1 1/2") 95 6mm extension
10mm compression		 9mm 15°
50mm (2") 105 7mm extension
10mm compression		 10mm 15°
65mm (2 1/2") 115 7mm extension
13mm compression		 11mm 15°
80mm (3") 135 8mm extension
15mm compression		 12mm 15°
100mm (4") 150 10mm extension
19mm compression		 13mm 15°
125mm (5") 165 12mm extension
19mm compression		 13mm 15°
150mm (6") 180 12mm extension
20mm compression		 14mm 15°
200mm (8") 210 16mm extension
25mm compression		 22mm 15°
250mm (10") 230 16mm extension
25mm compression		 22mm 15°
300mm (12") 245 16mm extension
25mm compression		 22mm 15°
350mm (14") 255 16mm extension
25mm compression		 22mm 15°
400mm (16") 255 16mm extension
25mm compression		 22mm 15°
450mm (18") 255 16mm extension
25mm compression		 22mm 15°
500mm (20") 255 16mm extension
25mm compression		 22mm 15°
600mm (24") 260 16mm extension
25mm compression		 22mm 15°
700mm (28") 260 16mm extension
25mm compression		 22mm 15°
800mm (32") 260 16mm extension
25mm compression		 22mm 15°
900mm (36") 260 16mm extension
25mm compression		 22mm 15°
1000mm (40") 260 18mm extension
26mm compression		 24mm 15°
1200mm (48") 260 18mm extension
26mm compression		 24mm 15°
Product Images
DN1200mm Pipe Rubber Expansion Joint Stainless Steel Neoprene Expansion Joint 0
Factory stock of rubber expansion joints
DN1200mm Pipe Rubber Expansion Joint Stainless Steel Neoprene Expansion Joint 1
Packaged expansion joints ready for shipment
Manufacturing Quality Assurance
  • Material certificates provided for all raw materials
  • Rubber composition strictly follows customer specifications
  • Vulcanized construction with no outer rubber layer - middle layer features full-mesh polyester cord reinforcement
  • Thick connecting layer for superior pressure resistance
  • Professional inspection process with burr removal and defect elimination
  • Custom vulcanization labels and branding options available
  • Special length customization supported
