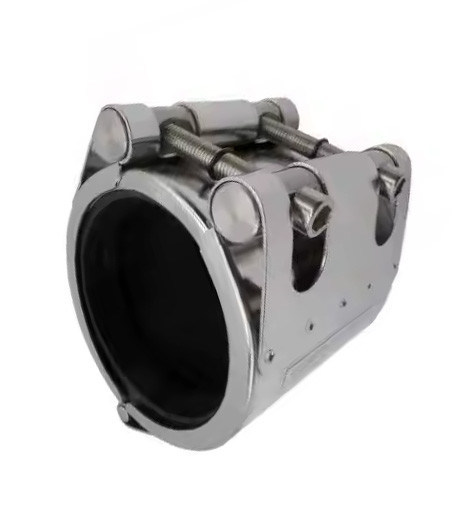

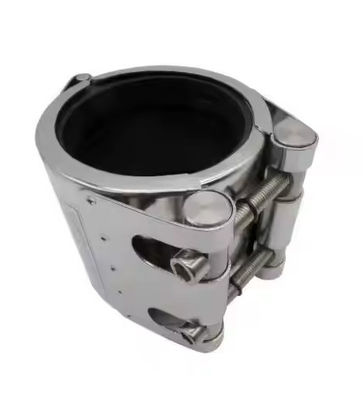

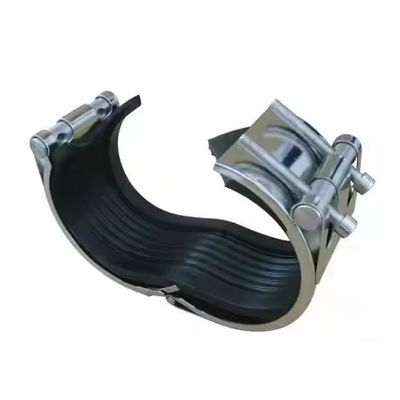

High Precision Metal Pipe Repair Clamp Multifunctional Repair Clamp Stainless Steel

High Precision Metal Pipe Repair Clamp Multifunctional Repair Clamp Stainless Steel
High Precision Metal Pipe Repair Clamp Multifunctional Repair Clamp Stainless Steel High Precision Metal Pipe Repair Clamp Multifunctional Repair Clamp Stainless Steel High Precision Metal Pipe Repair Clamp Multifunctional Repair Clamp Stainless Steel

Large Image :  High Precision Metal Pipe Repair Clamp Multifunctional Repair Clamp Stainless Steel

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: FCH
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄6.9-22.4 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 piece per month
Contact Now Chat Now

High Precision Metal Pipe Repair Clamp Multifunctional Repair Clamp Stainless Steel

Description
Surface Treatment: Smooth Shell Matrerial: Stainless Steel
Size: Customized Size Warranty: 1 Year
Connection: Bolted Connection Application: Water
Seal Ring Material: NR, EPDM, NBR, Neoprene,etc Customized Support: OEM
Feature: Corrosion Resistant
Highlight:

High Precision Metal Pipe Repair Clamp

,

Metal Pipe Repair Clamp Multifunctional

,

Multifunctional Repair Clamp Stainless Steel

High Precision Metal Pipe Repair Clamp
Multifunctional Stainless Steel Repair Clamp
The FCH repair clamp is designed for rapid pipeline leakage repair, capable of fixing sand holes and fractures caused by aging and rust without requiring pipeline replacement or pressure shutdown. Its convenient installation requires no special tools, ensuring high construction efficiency.
Key Features
  • Toothed fixing ring design: Provides axial tensile capability, replacing various connection methods including flange, welding, thread, layer plug, and groove joints.
  • Enhanced sealing performance: Sealing lip design improves sealing effect under pressure, preventing leakage of fluids, gases, and solids while maintaining elasticity.
  • Wide application range: Suitable for all wall thickness metal pipes, with sealing lip gaps accommodating various media changes.
  • Easy installation: Requires only cleaning and smoothing of pipe ports, with step-by-step ferrule tightening to prevent excessive force.
  • Material compatibility: Works best with uniform material pipes, avoiding bends at embedded sections to prevent leakage.
Technical Specifications
High Precision Metal Pipe Repair Clamp Multifunctional Repair Clamp Stainless Steel 0
Pipe OD (mm) Pipe Diameter Range (mm) PN Dimensions Bolt Bolt Torque
18 17-19 16 57 35 6 10
21.7 21-23 16 57 45 6 10
25 24.5-25.5 16 57 50 6 10
27.2 26-28 16 57 50 6 10
32 31.5-32.5 16 57 55 6 10
34 33-35 16 57 55 6 10
40 39.5-41.5 16 57 55 6 10
42 42-44 16 57 65 6 15
44.5 44-45.1 16 57 65 6 15
48.6 47-49 16 57 70 6 15
54 53.6-54.6 16 57 70 8 30
57 56.3-57.7 16 57 80 8 30
60.3 59-62 16 80 85 8 30
63 62.2-63.9 16 80 85 8 30
76.1 76-78 16 80 100 8 30
79.9 78.8-80.8 16 80 100 8 30
88.9 88-92 16 107 110 10 50
108 106-110 16 107 130 10 50
110 108.9-111.2 16 107 130 10 50
114.3 112-116 16 107 135 10 50
118 116.6-119.2 16 107 140 10 50
125 123.6-126.5 16 107 150 10 50
133 131.5-134.4 16 107 160 10 50
Note: The above data represents standard sizes. Contact us for custom dimensions.
Applications
  • Surface and underground construction
  • Shipbuilding platforms and marine vessels
  • Oil, water, gas, and natural gas supply systems
  • Industrial production and wastewater treatment
  • Crude oil, gas, and natural gas pipelines
