Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp

Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp
Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp

Large Image :  Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: FCTR
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece
Price: ＄11.3-18.6 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp

Description
Seal Ring Material: NR, EPDM, NBR, Neoprene,etc Application: Water, Gas, Oil, Etc.
Usage: Pipe Quick Easy Pipe Repair Clamp Product Drawing: Offer
Warranty: 12 Months Technics: Stamping
Connection: Bolted Connect Shape: Equal
Head Code: Round
Highlight:

Customized High Pressure Pipe Repair Clamps

,

High Pressure Pipe Repair Clamps SS316

,

SS316 HDPE Pipe Repair Clamp

Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp
Product Description

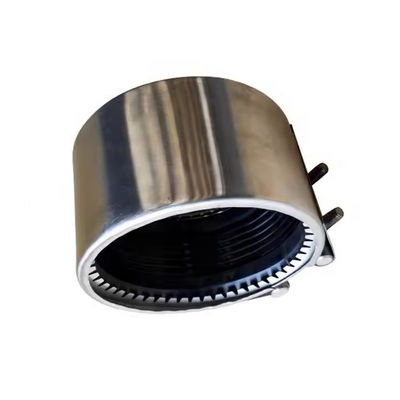

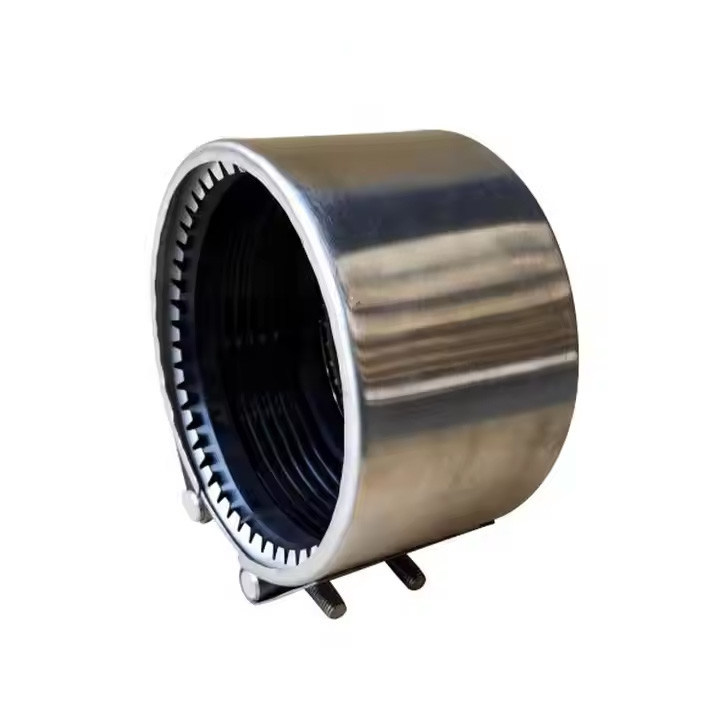

Customized large diameter pipe SS316 stainless steel oil grinder HDPE repair clamps

FCTR connector is a toothed ring type pipe connector with strong sealing performance and pull-off resistance, used to connect PE and other non-metallic pipes. Its toothed ring design provides excellent shock absorption, impact resistance, and noise reduction.

Product Advantages
  • Sealing performance and anti-pull-out ability: Excellent sealing and pull-out resistance ensure stable, reliable pipe connections.
  • Seismic and impact resistance: Designed to absorb shocks and reduce noise in pipeline connections.
  • Wide range of application: Compatible with different media by selecting appropriate rubber rings.
  • Simple operation: No professional installation required - easy to install and operate.
  • Compensation for axial displacement: Effectively compensates for axial displacement during installation.
  • Reuse: Can be repeatedly disassembled and used for temporary pipes.
  • Flexible installation: No special pipe end treatment required - connects pipes even with gaps between them.
Product Parameters
Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp 0
NO NAME MATERIAL QUANTITIES
1 Toothed rings SS304 2
2 Guard board SS304 1
3 Nut tie rod SS304 1
4 Screw hole pull rod SS304 1
5 Rubber sleeve EPDM 1
6 Shell steel plate SS304 1
7 Bolt SS304 N
Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp 1
Pipe OD (mm) Pipe Diameter Range (mm) PN Dimensions Bolt Bolt torque
L1 D
21.7 21-23 16 57 35 6 15
25 24.5-25.5 16 57 50 6 15
27.2 26-28 16 57 50 6 15
Tips: The above data is only part of the data. If you need a special size, please contact us.
Product Applications
  • New pipeline projects: Shortens construction periods, reduces labor costs, and simplifies installation.
  • Temporary pipelines: Reusable design ideal for temporary installations.
  • Narrow environments: Can be quickly installed in confined spaces with minimal requirements.
Different Types of Products
Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp 2 Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp 3 Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp 4 Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp 5
Product Details
Customized High Pressure Pipe Repair Clamps SS316 HDPE Pipe Repair Clamp 6
